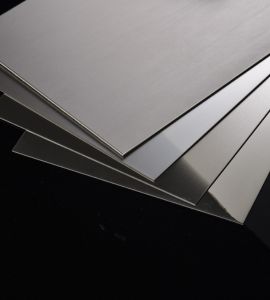

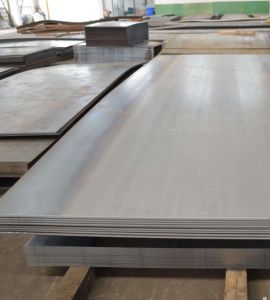

Boikanyo Sheets and Plates, located in Cape Town, South Africa, stands out as a reliable manufacturer and supplier of top-notch Stainless Steel 347 Sheets and Plates. With a strong focus on delivering durable and dependable stainless steel products, the company serves industries that require exceptional resistance to corrosion, heat, and high-stress conditions. Stainless Steel 347 is enhanced with columbium, which provides outstanding resistance to intergranular corrosion, especially after being exposed to high temperatures. Boikanyo Sheets and Plates is dedicated to offering products that align with international standards, catering to clients in construction, chemical, power generation, and engineering sectors with unparalleled quality and performance.
Stainless Steel 347 Sheets and Plates are primarily made up of iron, 17–19% chromium, 9–13% nickel, along with small amounts of columbium/tantalum for superior stabilization. The alloy also includes controlled levels of carbon, manganese, silicon, phosphorus, and sulfur. It boasts a tensile strength of approximately 515 MPa, a yield strength of around 205 MPa, and an elongation of 40%. With a melting range between 1398–1446°C, it exhibits excellent toughness, creep strength, and corrosion resistance. This specific composition ensures durability in high-temperature operations, making Stainless Steel 347 ideal for long-term use in challenging environments.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

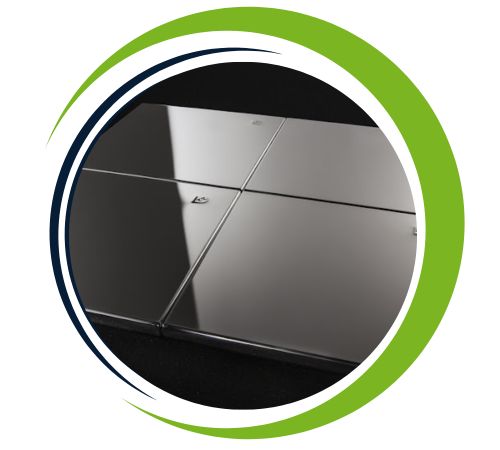

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

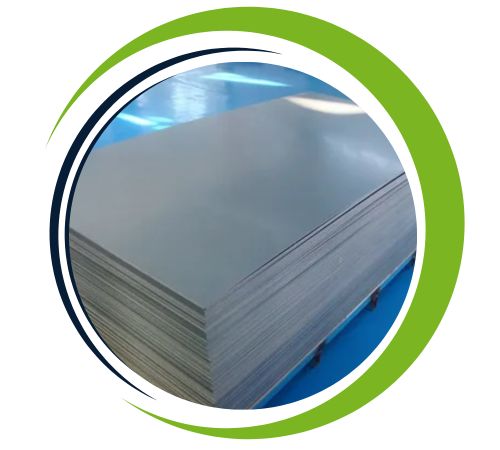

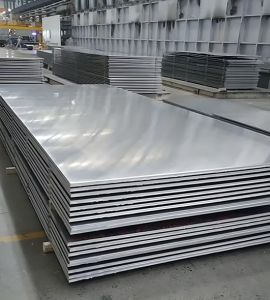

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

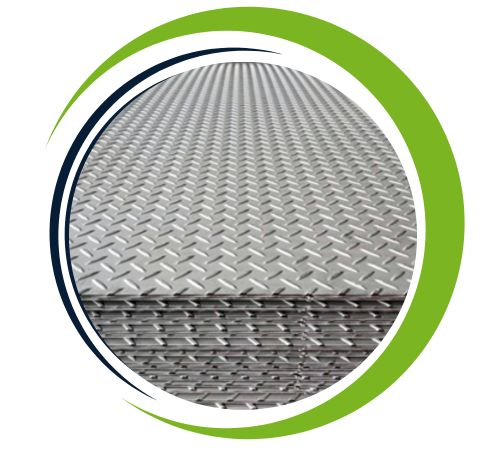

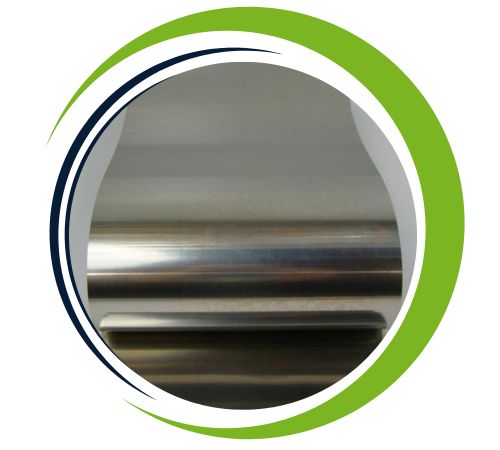

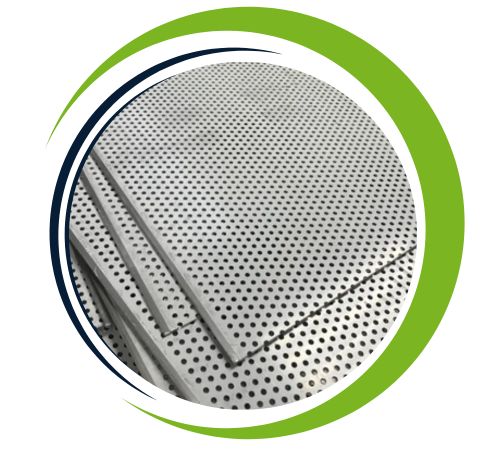

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|

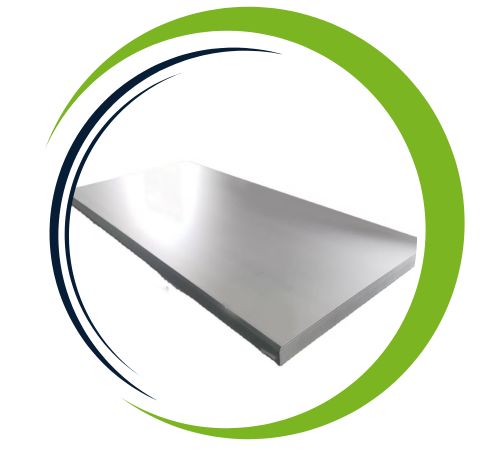

| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 347 sheets and plates offer several advantages, including excellent resistance to intergranular corrosion, making them ideal for high-temperature applications The addition of niobium stabilizes the material and provides carbide precipitation a resistance is high, especially in the welded state. It provides excellent oxidation and scaling resistance at high temperatures, making it suitable for environmental applications such as chemical processing, power generation, aerospace industries etc. Stainless steel 347 with strength a outstanding, durable and corrosion resistance ensure long-term performance in extreme conditions, reduce maintenance costs and extend component life.
Stainless steel 347 sheets and plates are widely used in applications requiring high temperatures and resistance to corrosion. It is commonly used in the chemical industry, power generation, and aerospace. Intergranular corrosion resistance makes them ideal for welded components in areas such as petrochemical plants and refineries. In addition, stainless steel 347 is used in heat exchangers, furnace components, combustion chambers and high-temperature tanks. Its excellent mechanical characteristics and durability make it desirable for critical applications where reliability and performance are important.
