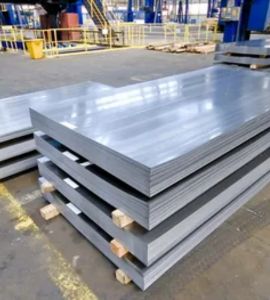

Boikanyo Sheets and Plates, based in Cape Town, South Africa, stands out as a top manufacturer and supplier of **Stainless Steel 316 Sheets and Plates**. They pride themselves on delivering high-quality products that blend strength, durability, and exceptional corrosion resistance. Crafted to meet international quality standards, these sheets and plates are highly sought after for their performance in tough and demanding conditions. With state-of-the-art production facilities and rigorous quality checks, Boikanyo ensures that their Stainless Steel 316 Sheets and Plates are reliable and long-lasting, making them a go-to partner for various industries, including marine, chemical, petrochemical, construction, food processing, and pharmaceuticals.
**Stainless Steel 316 Sheets and Plates** are made up of iron, chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), along with trace amounts of carbon, manganese, and silicon. This unique blend boosts their resistance to pitting, crevice corrosion, and environments rich in chloride. On the mechanical side, they boast impressive tensile strength, yield strength, and good elongation, along with toughness and durability even in cryogenic temperatures. Their outstanding corrosion resistance, paired with high mechanical performance and excellent weldability, makes Stainless Steel 316 Sheets and Plates the material of choice for industries that demand both strength and reliability in challenging applications.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

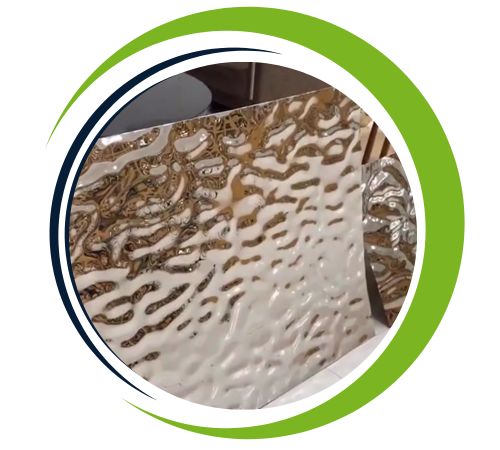

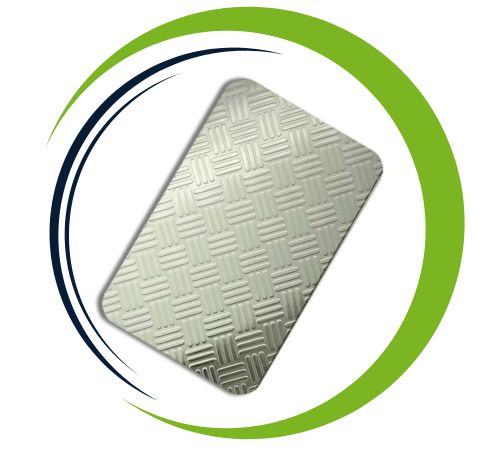

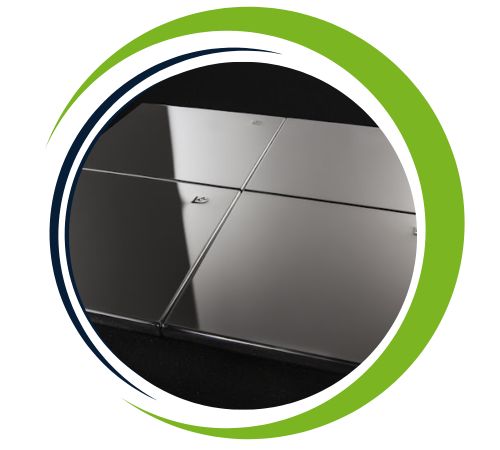

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

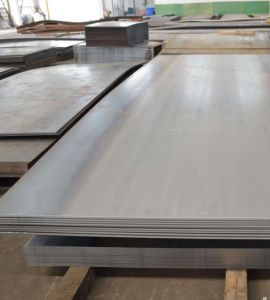

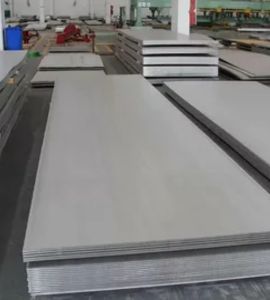

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

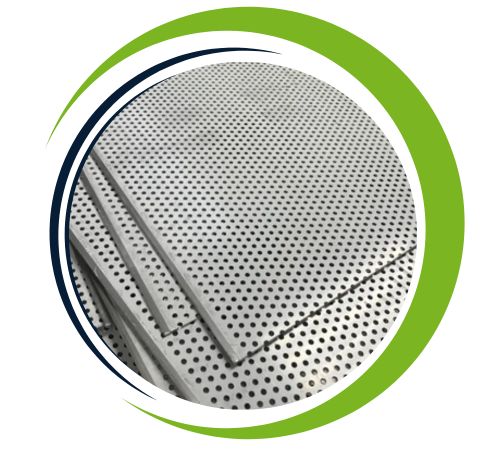

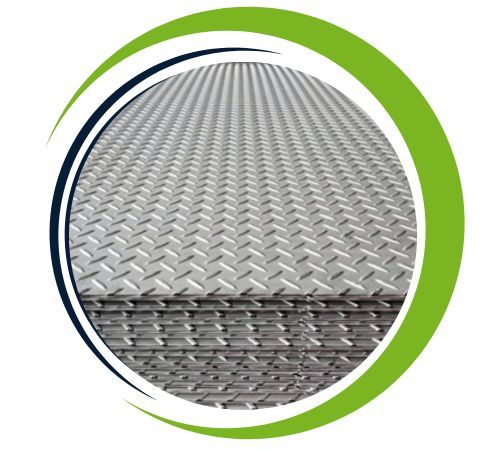

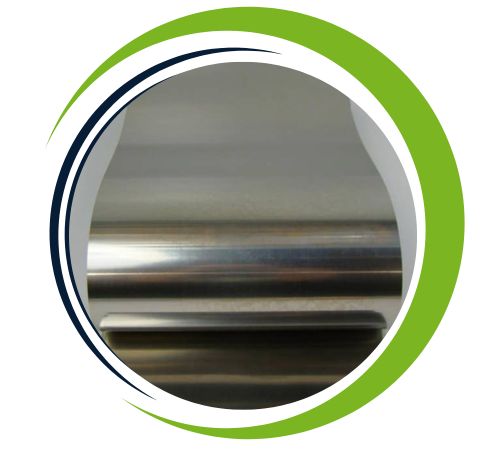

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316 sheets and plates have many advantages, including exceptional corrosion resistance, especially in high chloride environments, making them ideal for marine and chemical applications They are extremely durable, . it has good strength, resistance to potholes, crack corrosion, and oxidation . It also provides excellent weldability, formability and toughness at high and low temperatures. Stainless Steel 316 is non-magnetic and resistant to extreme conditions, providing durability and reliability. These properties make it ideal for food processing, pharmaceutical, marine, and other industries.
**Stainless Steel 316 Sheets and Plates** find extensive use in sectors that require top-notch corrosion resistance and durability. In the **marine industry**, they are essential for shipbuilding, offshore platforms, and seawater equipment. The **chemical and petrochemical industries** utilize them for tanks, piping systems, and pressure vessels. They are also a popular choice in the **food and beverage sector** for processing equipment due to their hygienic properties. In **construction and architecture**, you’ll see them used in cladding, roofing, and structural frameworks.
