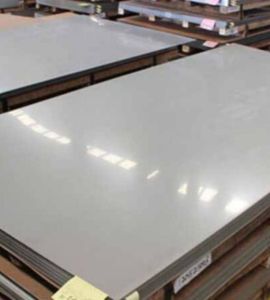

Boikanyo Sheets and Plates, located in Cape Town, South Africa, is a well-respected manufacturer and supplier of top-notch industrial materials, including Hastelloy C22 Sheets and Plates. Known for their remarkable corrosion resistance and durability, these products are specifically designed to perform reliably in extremely aggressive chemical environments. Boikanyo Sheets and Plates takes pride in their precision manufacturing and rigorous quality control, ensuring that their materials meet international standards and the specific needs of their clients. With a strong commitment to excellence, they provide solutions that cater to the demanding requirements of the chemical processing, marine, and aerospace industries, making them a trusted partner for those in need of superior corrosion-resistant materials.
Hastelloy C22 Sheets and Plates are crafted from a nickel-molybdenum-chromium alloy that offers outstanding corrosion resistance in both oxidizing and reducing environments. Typically, this alloy consists of about 56% nickel, 22% chromium, 13% molybdenum, and 3% tungsten, along with trace amounts of iron, cobalt, and manganese. In terms of mechanical properties, it boasts high tensile strength, excellent ductility, and remarkable resistance to pitting, crevice corrosion, and stress-corrosion cracking. C22 remains stable across a wide temperature range, ensuring both structural integrity and long-term reliability in harsh chemical, marine, and industrial settings where corrosion resistance and strength are crucial.
| Type | Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
|---|---|
| Grade | ASME SB575, ASTM B575 UNS N06022, AMS, MSRR, BS |
| ASTM B575 Alloy C22 Plate Length | 0-12mm or as required |
| Specification of Plate | ASTM B575 UNS N06022, ASME SB575, MSRR, BS, AMS 4544 sheet |
| UNS N06022 Plate Width | 0-2500mm or as required |
| Plate Thickness | 0.3 to 1200 mm or as required |
| Alloy C22Plate Process | Hot/ Cold Rolled |
| Plate surface | No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM B575 Alloy C22 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
|
Stocked Sizes |
|
|---|---|
|
Size (in inches) |
Size (in mm) |
|
.125″ |
3.18mm |
|
.134″ |
3.40mm |
|
.156″ |
3.96mm |
|
.187″ |
4.75mm |
|
.250″ |
6.35mm |
|
.312″ |
7.92mm |
|
.375″ |
9.53mm |
|
.500″ |
12.7mm |
|
.600″ |
15.9mm |
|
.750″ |
19.1mm |
|
.875″ |
22.2mm |
|
1″ |
25.4mm |
|
1.125″ |
28.6mm |
|
1.250″ |
31.8mm |
|
1.500″ |
38.1mm |
|
1.750″ |
44.5mm |
|
2″ |
50.8mm |
|
2.500″ |
63.5mm |
|
3″ |
76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy C22 sheets and plates offer outstanding advantages, making them ideal for use in harsh environments. They provide excellent resistance to both oxidizing and reducing agents, ensuring protection against pitting, crevice corrosion, and stress corrosion cracking. Their versatility allows them to perform reliably in aggressive chemical processes, including acidic and chlorinated environments. With high mechanical strength and exceptional durability, they are suitable for high-temperature applications. Additionally, Hastelloy C22 sheets and plates exhibit excellent weldability, ease of fabrication, and long service life, reducing maintenance and enhancing efficiency in demanding industrial operations.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Hastelloy C22 Sheets and Plates find extensive use in chemical processing, pollution control, marine, and aerospace applications due to their exceptional corrosion resistance. They are commonly utilized in chemical reactor vessels, heat exchangers, piping systems, and storage tanks that handle aggressive acids and oxidizing agents. Their impressive durability and resistance to localized corrosion make them perfect for environments that involve chlorides, oxidizers, and other corrosive substances. Moreover, C22’s formability and weldability enable the precise fabrication of complex components, ensuring that they meet the specific demands of various applications.
