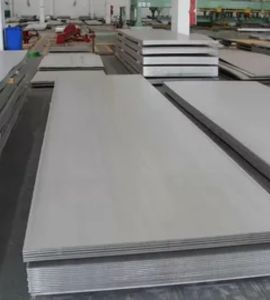

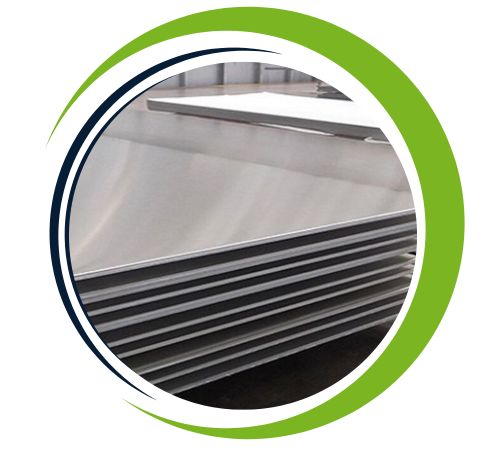

Boikanyo Sheets and Plates, located in Cape Town, South Africa, is a well-respected manufacturer and supplier of top-notch Stainless Steel 304 Sheet and Plate products. They’ve built a solid reputation for their consistent quality, dependable supply, and precision engineering, catering to clients from various industries that need corrosion-resistant and durable stainless steel materials. Their Stainless Steel 304 sheets and plates come in a range of thicknesses, widths, and finishes, making them perfect for both standard and custom applications. With a strong commitment to service excellence, product integrity, and quick turnaround times, Boikanyo has established itself as a trusted name in stainless steel supply throughout the region and beyond.
Stainless Steel 304 is the most widely used austenitic chromium-nickel stainless steel alloy, containing about 18–20% Chromium and 8–10.5% Nickel. It has a carbon content of up to 0.08%, which gives it good weldability and corrosion resistance. The mechanical properties of 304 include a tensile strength of around 515–750 MPa, a yield strength of approximately 205 MPa, and an elongation of 40% or more, depending on how it’s processed. It also maintains excellent toughness, even at cryogenic temperatures. These features make Stainless Steel 304 a versatile material that’s great for forming, welding, and machining in a wide range of manufacturing processes.
| ASTM Specification | ASTM A240 / ASME SA240 |
|---|---|
| Standard | MSRR, AMS, BS, ASTM A240 / ASME SA240 |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, 4′ x 8′, Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |

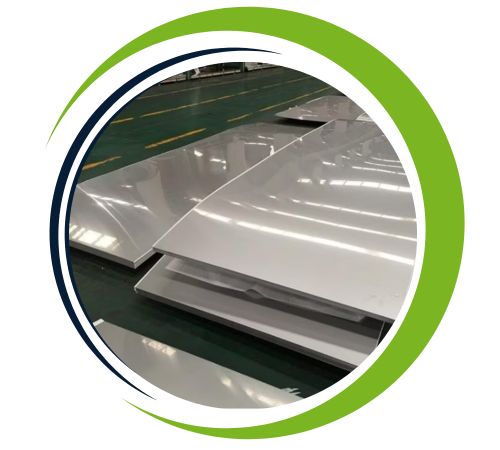

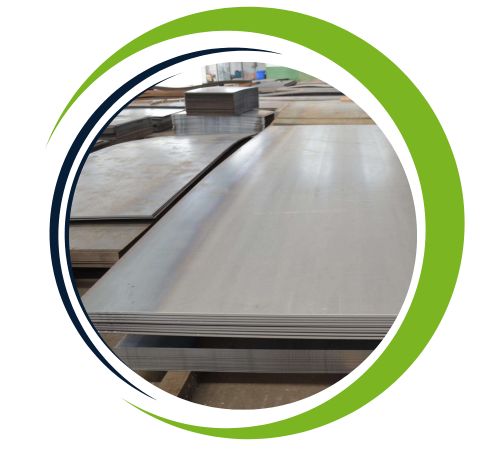

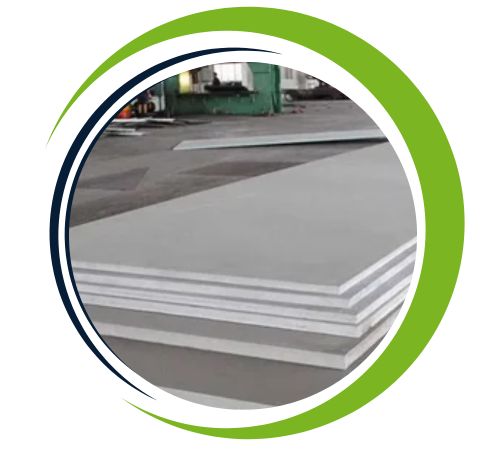

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

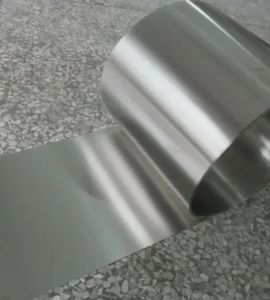

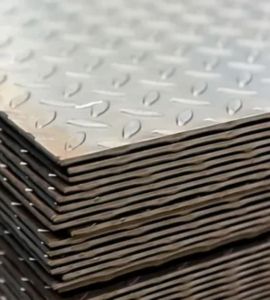

| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Test Report |
|
| Profiling | To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |

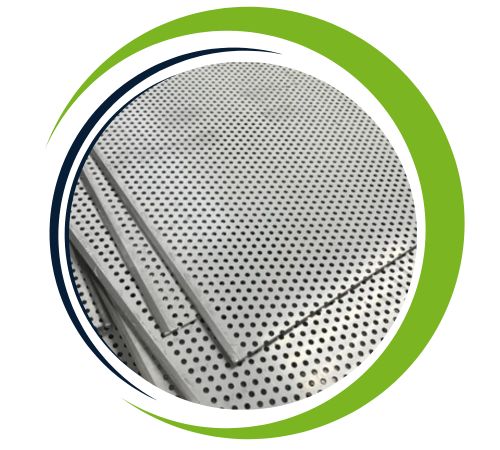

| Hole Dia mm | Hole Centres mm | O/A | Finish | Tck mm | Full Sheet Size mm |
|---|---|---|---|---|---|
| 0.75 | 1.5 | 23% | 2B | 0.6 | 2000 x 1000 |
| 1 | 2 | 23% | 2B | 1.0 | 2000 x 1000 |
| 1.5 | 2.6 | 30% | 2B | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 2B | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 2B | 1.0 | 2000 x 1000 |
| 3 | 5 | 33% | 2B | 1.0 | 2000 x 1000 |
| 4 | 5.6 | 46% | 2B | 1.0 | 2000 x 1000 |
| 5 | 8 | 35% | 2B | 1.0 | 2000 x 1000 |
| 6 | 8 | 51% | 2B | 1.0 | 2000 x 1000 |
| 8 | 10 | 58% | 2B | 1,0 | 2000 x 1000 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 304 Sheet and Plate products are commonly used in industries like food processing, chemical handling, architecture, pharmaceuticals, and household appliances. Its outstanding corrosion resistance makes it ideal for environments that are exposed to moisture, mild chemicals, and oxidizing agents. Typical applications include kitchen equipment, tanks, piping systems, countertops, elevator panels, wall cladding, and medical instruments. Thanks to its hygienic properties and easy-to-clean surface, 304 is often the go-to material for many projects.
Stainless steel 304 sheets and plates offer unique advantages, including excellent resistance to corrosion and oxidation, ensuring durability in harsh environments They have high tensile strength, ductility and weldability, and enabling versatility for a variety of requirements. These sheets and plates withstand extreme temperatures, making them suitable for both cryogenic and high temperature applications. Their smooth surfaces are easy to clean and easy to use, ideal for the food processing and pharmaceutical industries. Furthermore, their aesthetic appeal, low maintenance and recyclability make them a cost-effective, non-environmentally friendly choice for construction, automotive and ready-to-use will be used.
Stainless steel 304 sheets and plates are widely used in various industries because of their durability and corrosion resistance. It is used for construction, roofing and building materials in construction. In the food and beverage industry, they are ideal for equipment such as countertops, sinks and storage tanks due to their cleaning properties. It is also used in chemical tanks and pipelines due to its strong chemical resistance. In addition, they find applications in medical devices, automotive parts, and marine environments, providing robustness, versatility, and reliability.
