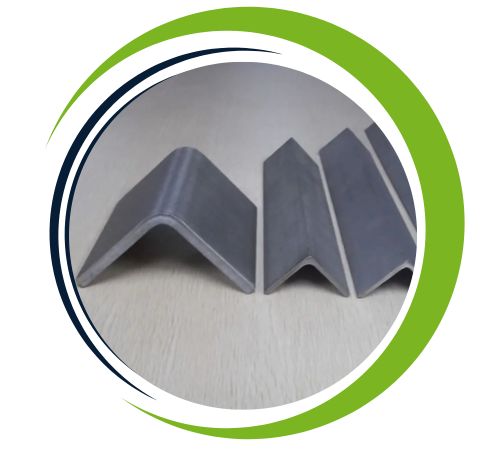

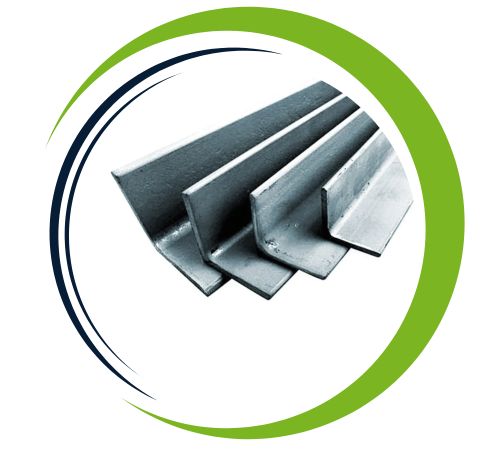

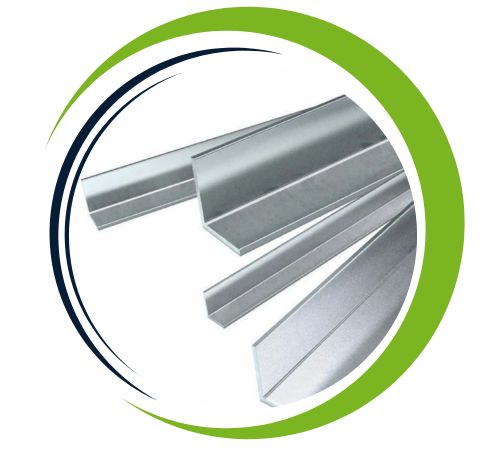

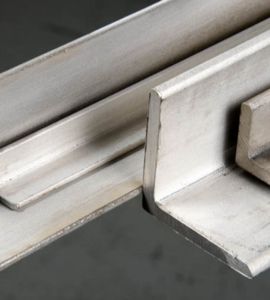

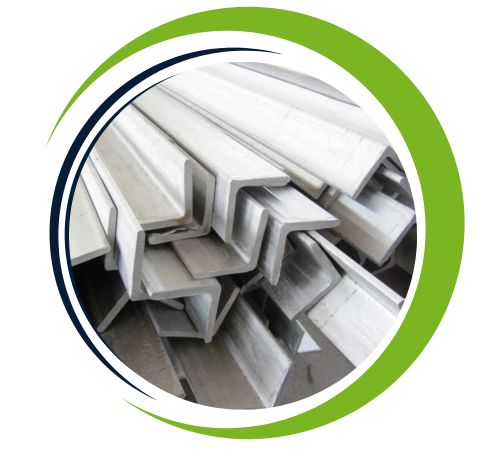

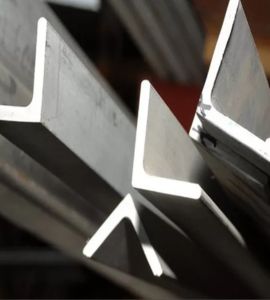

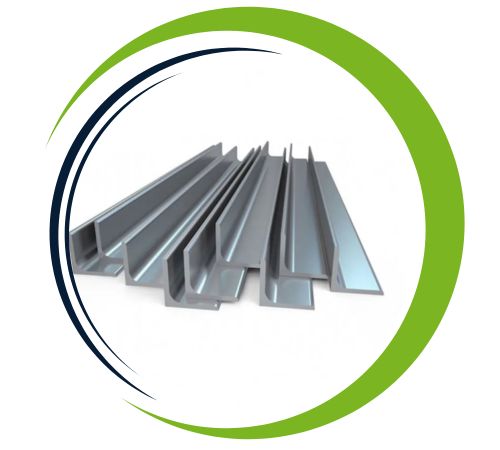

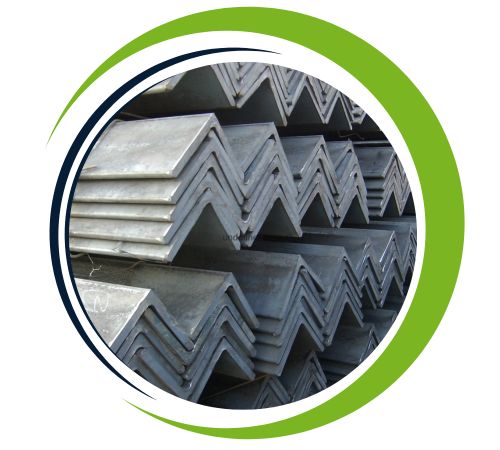

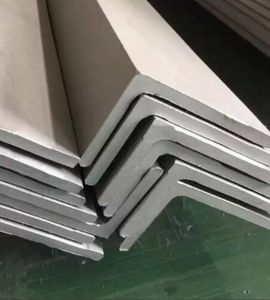

Boikanyo Sheets and Plates, located in Cape Town, South Africa, stands out as a premier manufacturer and supplier of **Stainless Steel 321H Angles**. They pride themselves on delivering top-notch products designed specifically for high-temperature and corrosive settings. These angles are titanium-stabilized, which helps prevent carbide precipitation during welding, and their higher carbon content boosts creep and tensile strength when exposed to elevated temperatures. With a commitment to international standards and rigorous quality control, Boikanyo Sheets and Plates ensures that their Stainless Steel 321H Angles are reliable for various industries, including petrochemical, chemical processing, power generation, marine, and construction, providing the durability, strength, and performance needed in tough industrial environments.
**Stainless Steel 321H Angles** are austenitic stainless steel products made up of iron, chromium (17–19%), nickel (9–13%), carbon (which is higher than that of standard 321), along with manganese, silicon, and titanium. The titanium stabilization plays a crucial role in preventing carbide formation during welding, which enhances resistance to intergranular corrosion. On the mechanical side, Stainless Steel 321H Angles showcase impressive tensile and yield strength, good ductility, toughness, and high fatigue resistance under thermal stress. Their increased carbon content significantly improves high-temperature creep strength, making them ideal for structural and industrial applications where mechanical durability and corrosion resistance are vital.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| % | Cr | Ni | C | Si | Mn | P | S | N | Ti | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| 321 | min:17.0 max:19.0 | min: 9.0 max:12.0 | max:0.08 | max:0.75 | max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 | Balance |
| 321H | min:17.0 max:19.0 | min: 9.0 max:12.0 | min:0.04 max:0.10 | min:18.0 max:20.0 | max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 | Balance |
| Grade | Tensile Strength ksi (min.) | Yield Strength 0.2% Offset ksi (min.) | Elongation – % in 50 mm (min.) | Hardness (Brinell) MAX |
|---|---|---|---|---|
| 321/321H | 75 | 30 | 40 | 217 |
| Denstiy lbm/in3 | Coefficient of Thermal Expansion (min/in)-°F | Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | |
|---|---|---|---|---|---|
| at 68 °F | at 68 – 212°F | at 68 – 1832°F | at 200°F | at 32 – 212°F | in tension (E) |
| 0.286 | 9.2 | 20.5 | 9.3 | 0.12 | 28 x 106 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Boikanyo Sheets and Plates based in Cape Town, South Africa, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 321H angle offers excellent advantages due to its high carbon content, especially increased resistance to creep and stress rupture at high temperatures Its titanium stabilizer prevents carbide precipitation, improving corrosion resistance at high temperatures . . . . This surface provides outstanding strength, durability and oxidation resistance up to 870°C, making it ideal for heat exchangers, chemical processing and furnace components And power generation more, its ease of manufacture and ability to withstand thermal cycling without losing strength make it the preferred choice for demanding industrial applications. It also retains technology.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
**Stainless Steel 321H Angles** find extensive use in industries that require high-temperature strength, durability, and corrosion resistance. In **chemical and petrochemical plants**, they are commonly found in heat exchangers, pressure vessels, piping systems, and reactors. The **power generation sector** employs them in boilers, turbines, and furnace components. In the **construction and marine industries**, they are utilized in frameworks, offshore platforms, and shipbuilding structures. Additionally, they play a role in **industrial machinery** applications, showcasing their versatility and reliability across various demanding environments.
