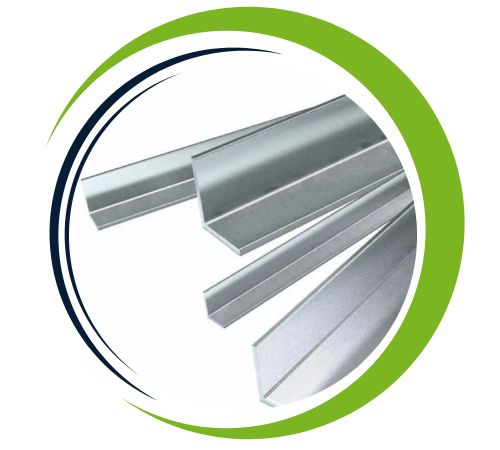

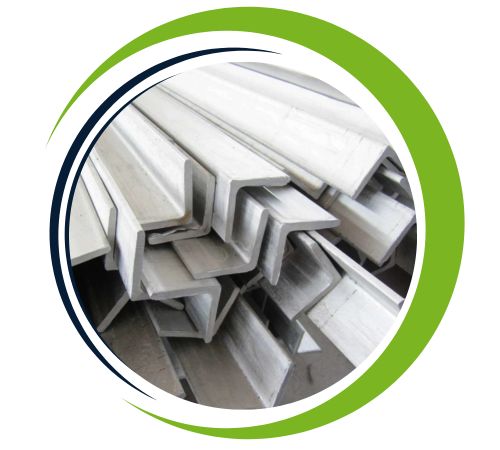

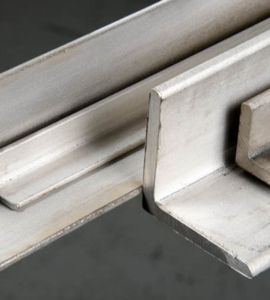

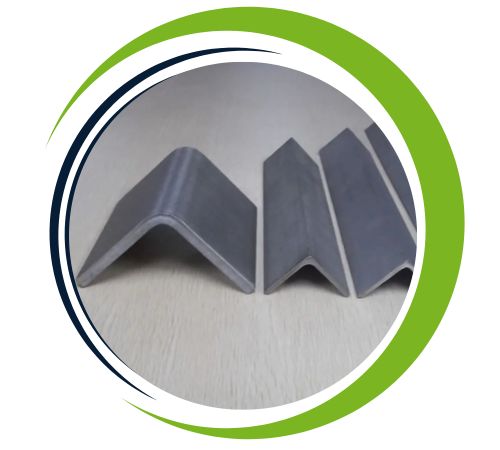

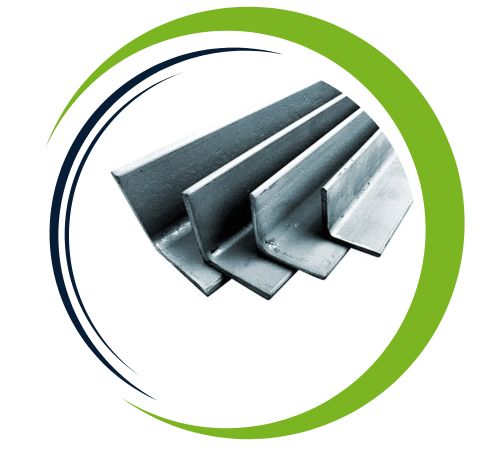

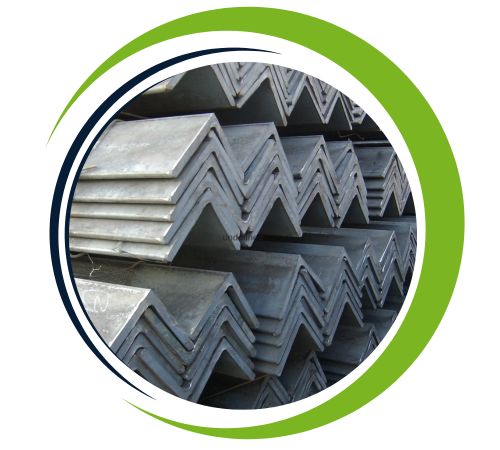

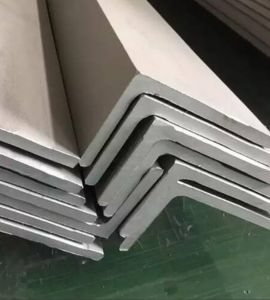

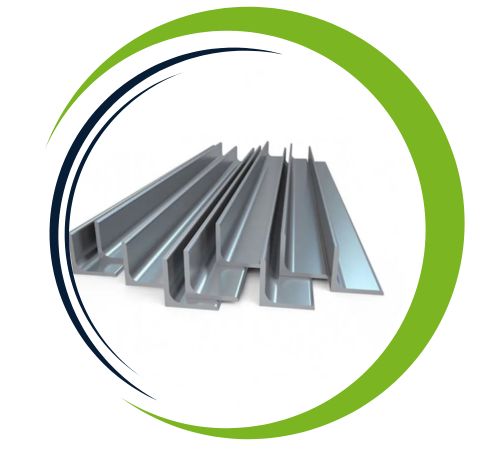

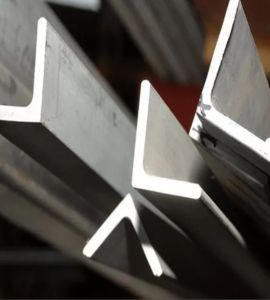

Boikanyo Sheets and Plates, located in Cape Town, South Africa, is a reputable manufacturer and supplier of top-notch Stainless Steel 202 Angle. Known for its durability, resistance to corrosion, and affordability, Stainless Steel 202 Angle is perfect for both structural and decorative uses. Boikanyo adheres to strict manufacturing standards, ensuring their products meet the needs of both industrial and architectural projects. With a strong commitment to quality, the company offers tailored solutions to fit client requirements. Their Stainless Steel 202 Angles are celebrated for their strength, versatility, and ability to retain their visual appeal even in tough conditions.
Stainless Steel 202 Angle is primarily made up of 17–19% chromium, 4–5% nickel, 7% manganese, along with small amounts of carbon, silicon, and phosphorus. This blend gives it impressive corrosion resistance in mild environments while boosting its hardness and tensile strength. Generally, the material shows a tensile strength ranging from 520–750 MPa and a yield strength between 215–275 MPa, with an elongation of about 30–40%. Its decent corrosion resistance, paired with good toughness and formability, makes it ideal for bending, welding, and fabrication. Stainless Steel 202 Angle strikes a great balance between strength, durability, and cost-effectiveness, making it a smart choice compared to higher-nickel stainless steels.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 202 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 202 | S20200 | 1.4373 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 202 angle offers many advantages, including excellent corrosion resistance, making it ideal for use in wet and chemical environments It has excellent strength and durability, and ensures performance reliability in construction applications. This alloy is cost-effective compared to higher grades like 304, while still providing high resistance to oxidation and turbidity. Stainless Steel 202 is highly versatile, easy to manufacture and maintain, and provides aesthetic appeal. It is commonly used in the construction, design and construction industry, providing a balance of energy and cost.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | SS 202 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 202 Angle Bar (kilogram/meter) |
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
Stainless Steel 202 Angle is commonly used in construction, building operations and building design due to excellent corrosion resistance and durability Ideal for fabricating frameworks, supports and reinforcements in industries such as construction, engineering and construction . . . . Furthermore, its anti-oxidation properties make it suitable for outdoor use and extremely humid environments. Stainless Steel 202 Angle is commonly used in railings, brackets, appliances, and other structural elements, providing strength and longevity under harsh conditions.
