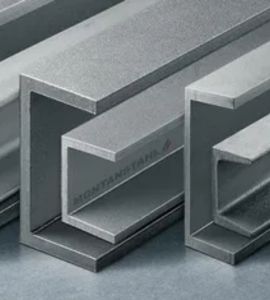

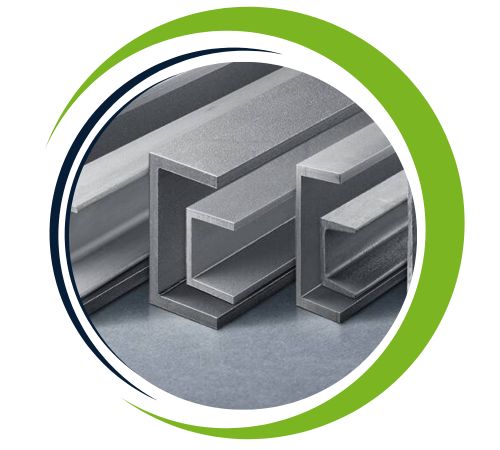

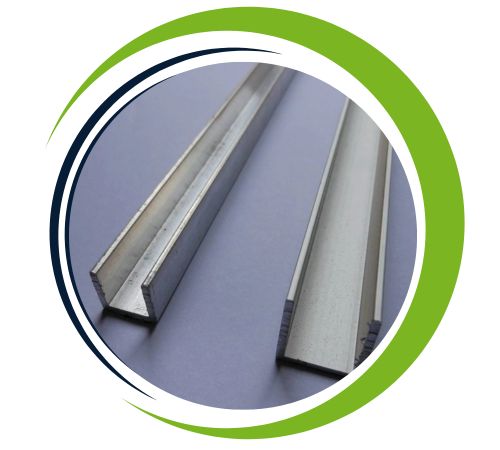

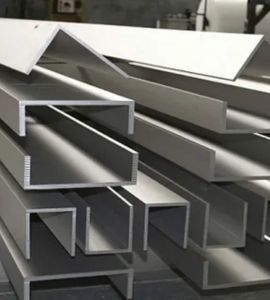

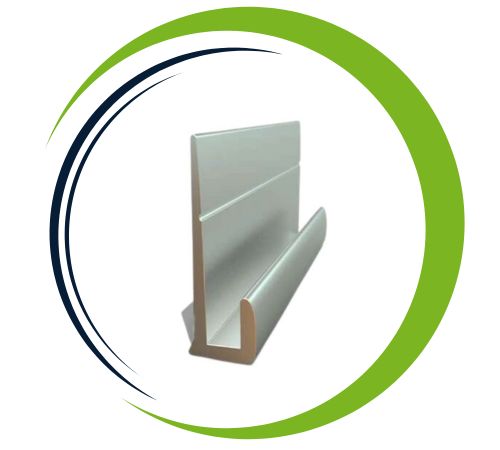

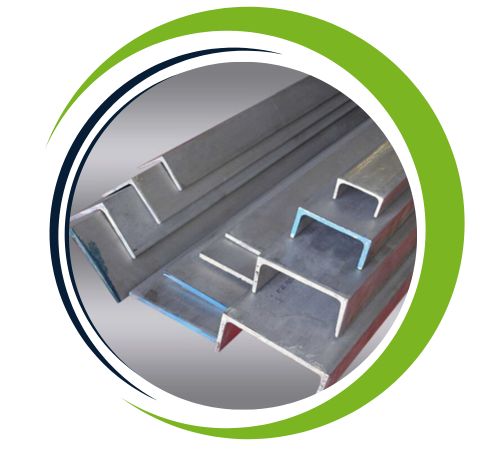

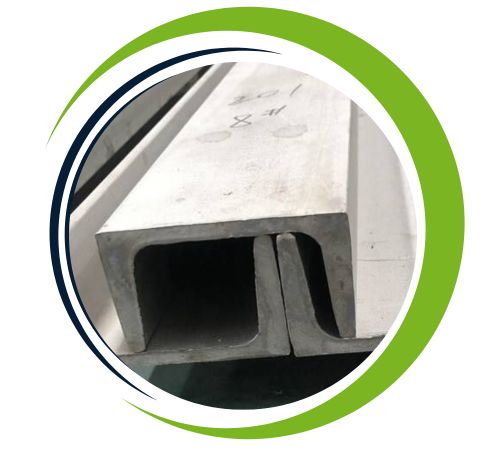

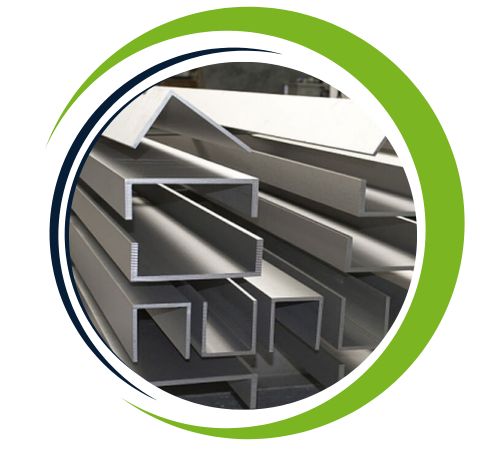

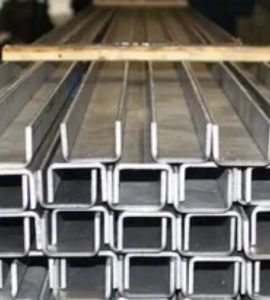

Boikanyo Sheets and Plates, located in the vibrant city of Cape Town, South Africa, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 317 Channels. These channels are celebrated for their remarkable strength, durability, and resistance to corrosion, making them perfect for tough industrial applications. With their impressive ability to resist chemical attacks, Stainless Steel 317 Channels are designed to thrive in harsh environments and deliver long-lasting performance. Boikanyo Sheets and Plates is dedicated to quality and customer satisfaction, ensuring that their precision-engineered products meet global standards. They cater to a variety of industries, from construction to petrochemical, providing dependable and efficient stainless steel solutions.
Stainless Steel 317L Channels is an austenitic alloy with a composition that includes 18-20% chromium (Cr), 11-15% nickel (Ni), 3-4% molybdenum (Mo), and a maximum of 0.08% carbon (C). It also contains small amounts of manganese, silicon, phosphorus, sulfur, and nitrogen. This unique composition provides enhanced corrosion resistance, particularly against chlorides and sulfides. The alloy boasts a tensile strength of approximately 515 MPa, a yield strength of 205 MPa, and an elongation of 35-40%. Its excellent mechanical properties make it ideal for high-stress and corrosive environments.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The Stainless Steel 317 Channel is primarily made up of chromium (18–20%), nickel (11–15%), and molybdenum (3–4%), along with trace amounts of carbon, manganese, silicon, and phosphorus. This unique blend gives it exceptional resistance to pitting and crevice corrosion. On the mechanical side, it boasts a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 35%. This alloy also shines with high creep resistance, good oxidation stability, and impressive toughness, even at elevated temperatures, making it a fantastic choice for applications in aggressive chemical and marine settings.
Stainless Steel 317 Channels find their place in various industries where outstanding corrosion resistance and strength are non-negotiable. They are frequently used in chemical processing equipment, pulp and paper manufacturing, petrochemical plants, and marine environments, thanks to their ability to endure harsh chemicals and saltwater. In construction, these channels not only provide structural support but also add a touch of aesthetic appeal. Additionally, they are utilized in food processing, textile machinery, and power generation plants, where a long service life and low maintenance are essential.
Yes, we offer custom sizes for Stainless Steel 317L Channel to meet specific project needs. Our team at Boikanyo Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | – | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Description | Process | G kg/m | h mm | b mm | tw mm | tf mm | r1 mm | r2 mm |
|---|---|---|---|---|---|---|---|---|
| C 50X25X5X6 | Hot Rolled | 3.95 | 50 | 25 | 5 | 6 | 6 | 3 |
| C 75X40X5X7 | Hot Rolled/Laser | 6.95 | 75 | 40 | 5 | 7 | 8 | 4 |
| C 100X50X5X7.5 | Hot Rolled/Laser | 9.37 | 100 | 50 | 5 | 7.5 | 8 | 4 |
| C 125X65X6X8 | Hot Rolled/Laser | 13.4 | 125 | 65 | 6 | 8 | 8 | 4 |
| C 150X75X6.5X10 | Hot Rolled/Laser | 18.62 | 150 | 75 | 6.5 | 10 | 10 | 5 |
| C 150X75X9X12.5 | Hot Rolled/Laser | 24.01 | 150 | 75 | 9 | 12.5 | 5 | 1 |
| C 180X75X7X10.5 | Hot Rolled/Laser | 21.52 | 180 | 75 | 7 | 10 | 2 | 1 |
| C 200X80X7.5X11 | Hot Rolled/Laser | 24.77 | 200 | 80 | 7.5 | 11 | 2 | 1 |
| C 200X90X8X13.5 | Hot Rolled/Laser | 30.53 | 200 | 90 | 8 | 13.5 | 2 | 1 |
| C 230X80X8X12 | Hot Rolled/Laser | 28.56 | 230 | 80 | 8 | 12 | 2 | 1 |
| C 250X90X9X13 | Hot Rolled/Laser | 34.86 | 250 | 90 | 9 | 13 | 2 | 1 |
| C 250X90X11X14.5 | Hot Rolled/Laser | 40.34 | 250 | 90 | 11 | 14.5 | 2 | 1 |
| C 300X90X9X12 | Hot Rolled/Laser | 37.17 | 300 | 90 | 9 | 12 | 2 | 1 |
| C 300X90X10X15.5 | Hot Rolled/Laser | 43.85 | 300 | 90 | 10 | 15.5 | 2 | 1 |
| C 300X90X12X16 | Hot Rolled/Laser | 48.78 | 300 | 90 | 12 | 16 | 2 | 1 |
| C 380X100X10.5X16 | Hot Rolled/Laser | 54.85 | 380 | 100 | 10.5 | 16 | 2 | 1 |
| C 380X100X13X16.5 | Hot Rolled/Laser | 62.5 | 380 | 100 | 13 | 16.5 | 2 | 1 |
| C 380X100X13X20 | Hot Rolled/Laser | 67.37 | 380 | 100 | 13 | 20 | 2 | 1 |
Stainless Steel 317L Channels are widely used in industries requiring superior corrosion resistance and strength. They are essential in chemical processing plants for handling acidic and chloride-rich solutions. In marine environments, they are used for structural frameworks and equipment exposed to saltwater. These channels are also employed in the construction of heat exchangers, storage tanks, and pressure vessels. The high-temperature resistance makes them suitable for furnace components and industrial heating systems. Additionally, they are used in the pharmaceutical and food processing industries for their hygienic and durable properties.
