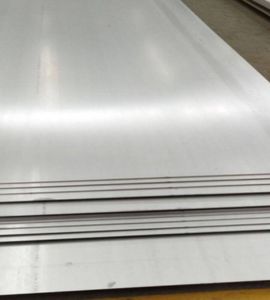

Boikanyo Sheets and Plates, located in Cape Town, South Africa, stands out as a trusted manufacturer and supplier of top-notch aluminium products, including Aluminium 5005 Plates and Sheets. Renowned for their impressive corrosion resistance, sleek surface finish, and excellent formability, these sheets and plates find their place in various sectors like architecture, transportation, and general fabrication. Boikanyo offers Aluminium 5005 in a range of sizes and tempers, ensuring consistent performance across all applications. With a commitment to international standards, Boikanyo delivers durable and versatile aluminium solutions that promise long-lasting reliability in both decorative and structural settings.
Aluminium 5005 Plates and Sheets consist of about 0.8–1.2% magnesium, along with small amounts of iron, silicon, and chromium. This alloy, which isn’t heat-treatable, boasts remarkable corrosion resistance, especially in marine and industrial environments. Typical mechanical properties include a tensile strength ranging from 130–200 MPa and a yield strength of 110–160 MPa, depending on the temper (usually H14 or H34). Elongation falls between 10–16%, ensuring good workability. Additionally, it responds excellently to anodizing, making it ideal for decorative and architectural finishes. Aluminium 5005 is lightweight, weldable, and maintains its strength and integrity even after fabrication and surface treatment.
| Standards | ASTM B209 / ASME SB209 |
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 0.2-50 |
| Width | 100-2600 |
| Length | 500-10000 |
| Surface | Bright, polished, hair line, brush, sand blast, embossed, etching, etc. |
| Finish | Mill, Customer specific finish |
| Aluminum Sheet/ Plate Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Chemical Properties | % Value |
| Silicon (Si) | 0.30 |
| Chromium (Cr) | 0.10 |
| Manganese (Mn) | 0.20 |
| Magnesium (Mg) | 0.5-1.1 |
| Copper (Cu) | 0.20 |
| Titanium (Ti) | – |
| Iron (Fe) | 0.7 |
| Zinc (Zn) | 0.25 |
| Aluminium (Al) | Balance |
| Property | Value |
| Proof Stress | 120 Min MPa |
| Tensile Strength | 145 – 185 MPa |
| Elongation at 50 mm | 3 Min % |
| Hardness Brinell | 47 HB |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aluminium 5005 Sheets and Plates offer numerous advantages, including excellent corrosion resistance, making them suitable for marine and outdoor environments. They have superior anodizing qualities, ensuring an attractive, durable finish ideal for architectural applications. Their lightweight nature allows for easy handling and fabrication, reducing transportation and installation costs. Aluminium 5005 demonstrates good weldability and moderate strength, providing versatility across various industries. Its non-heat-treatable but cold-workable property enhances strength when needed, making it a reliable choice for roofing, cladding, signage, and decorative applications where durability and aesthetics are key.
Yes, we offer custom sizes for Aluminium 5005 Plates and Sheets to meet specific project needs. Our team at Boikanyo Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Standard | UNS | ISO | BS | DIN |
| 5005 | A95005 | AlMg1 | N41 | 3.3315 |
| Properties | Metric | Imperial |
| Tensile strength | 130 MPa | 18855 psi |
| Yield strength | 125 MPa | 18130 psi |
| Shear strength | 83 MPa | 12039 psi |
| Fatigue strength | 55 MPa | 7977 psi |
| Elastic modulus | 70-80 GPa | 10153-11603 ksi |
| Poisson’s ratio | 0.33 | 0.33 |
| Elongation | 10% | 10% |
| Hardness | 35 | 35 |
Aluminium 5005 Plates and Sheets are frequently utilized in architectural projects like curtain walls, facades, signage, and cladding, thanks to their smooth finish and outstanding anodizing characteristics. In the transportation sector, they’re perfect for body panels, interior trim, and fuel tanks, where corrosion resistance and formability are crucial. They also serve well in appliance panels, showcasing their versatility and reliability.
