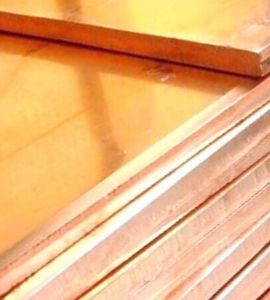

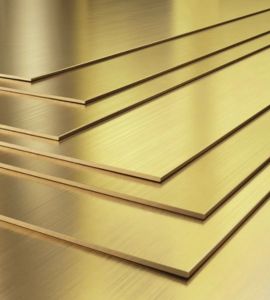

Boikanyo Sheets and Plates, located in Cape Town, South Africa, offers top-notch **Phosphorous Bronze Sheets and Plates** that are celebrated for their remarkable strength, resistance to corrosion, and excellent electrical conductivity. Available in a range of thicknesses and sizes, these sheets and plates are perfect for use in electrical, marine, and industrial applications. Boikanyo is committed to precision manufacturing and dependable delivery, ensuring that their materials meet rigorous quality standards for environments where durability and performance are crucial.
Phosphorous Bronze is an alloy primarily made of copper, containing about **0.5% to 1% phosphorus** along with trace amounts of tin, which boosts its mechanical properties and wear resistance. This alloy is known for its good tensile strength, outstanding fatigue resistance, and exceptional corrosion resistance, particularly against seawater and atmospheric conditions. Additionally, it showcases excellent frictional properties, making it ideal for bearing applications. Its impressive electrical and thermal conductivity further enhances its adaptability in various engineering contexts.
| Material | Phosphor Bronze Sheet/Plate |
| Grade | Alloy 510, Alloy 521, Alloy 519, Alloy 544 |
| Standard | ASTM B103 |
| Size | Thickness 0.1 mm to 50 mm; Width up to 500 mm; Length up to 2000 mm |
| Surface | Rolling surface, Chemical cleaned, Grinding |
| Element | Zinc (Zn) | Iron (Fe) | Tin (Sn) | Copper (Cu) | Lead (Pb) | Phosphorous (P) | Nickel (Ni) | Others |
|---|---|---|---|---|---|---|---|---|
| % | .00 – .20 | .00 – .10 | 4.50 – 5.50 | Balance | .00 – .02 | .01 – .40 | .00 – .20 | .00 – .20 |
| Tensile strength | Hardness | Elongation at break | Modulus of elasticity | Izod impact strength | Shear strength |
|---|---|---|---|---|---|
| 320 – 740 MPa | Brinell : 80 – 225 | < 60 % | 90 – 120 GPa | 62 J m⁻¹ | 250 – 430 MPa |
| Electrical resistivity | 11-16 µOhmcm |
|---|---|
| Temperature coefficient | 0.00060 – 0.00070 K⁻¹ |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Melting Point | Thermal Conductivity | Electrical Conductivity 20°C | Coeff. of Thermal Expansion 20-300°C | Specific Heat |
|---|---|---|---|---|
| 1050°C | 69 W/m°C | 15% IACS | 17.8 x 10-6 | 377 J/Kg°K |
| Machinability Rating | Annealing Temperature | Hot formability | Stress Relieving temperature | Cold Formability |
|---|---|---|---|---|
| 20% | 675 to 745°C | Limited | 200 to 350°C | Excellent |
| Dimensions in mm | Thickness in mm |
|---|---|
| 200 X 150 | .2 |
| 200 X 150 | .25 |
| 200 X 150 | .3 |
| 200 X 150 | .4 |
| 200 X 150 | .5 |
| 200 X 150 | .8 |
| 200 X 150 | 1 |
| Size in mm (L * W * T) | Weight in kilogram |
|---|---|
| 2000 * 300 * .5 | 2.69 |
| 2000 * 300 * .6 | 3.23 |
| 2000 * 300 * 1.2 | 6.46 |
| 2000 * 300 * 2 | 10.75 |
| 2000 * 300 * 2.5 | 13.43 |
| 2000 * 300 * 3 | 16.12 |
Phosphor bronze sheets and plates are made from a small percentage of copper and tin phosphorus, which increases their strength, corrosion resistance and machinability In typical products 90-95% copper, 5-1. 8% tin, 0.01-0 and .35% phosphorus. These alloys exhibit excellent mechanical properties such as high tensile strength (up to 600 MPa), excellent fatigue resistance and low abrasion resistance, especially corrosion resistance in marine and chemical environments, and also high toughness, Because of their high durability and durability, phosphor copper sheets and plates are ideal for precision applications in a variety of industrial applications.
Phosphor bronze sheets and plates are widely used in industry for strength, durability and corrosion resistance. In marine applications, it is used for ship components such as propellers and shafts due to its anti-seawater properties. In the electrical industry they are used in connectors, switches and spring components due to their excellent conductivity and elasticity. They are also used in the manufacture of gears, bearings and bushings for machinery as their low friction reduces corrosion. In addition, they find value in musical instruments and furniture because of their aesthetics.
