Boikanyo Sheets and Plates is a reputable manufacturer and supplier located in Cape Town, South Africa, known for its top-notch stainless steel products, including the sturdy Stainless Steel 201 Angle. With a strong focus on quality, precision, and customer satisfaction, Boikanyo caters to a variety of industries by delivering durable and cost-effective steel solutions. Their SS 201 Angles are designed to comply with both local and international standards, making them perfect for structural and architectural uses. Boikanyo takes pride in providing reliable delivery, expert guidance, and a diverse inventory to meet the unique needs of its clients.
The Stainless Steel 201 Angle is an austenitic alloy primarily made of iron, containing about 16–18% chromium, 3.5–5.5% manganese, 4–5.5% nickel, along with trace elements like nitrogen and carbon. It boasts excellent toughness, moderate resistance to corrosion, and high yield strength. Typical mechanical properties include a tensile strength of around 520 MPa, yield strength of 275 MPa, and good elongation of about 45%. SS 201 is more affordable than 300-series grades due to its lower nickel content, yet it still delivers solid performance for many structural and decorative applications.
| Grade : | Nb1,NbZr,R04200 |
| Standard : | ASTM B393-05 |
| Purity : | 99.95% |
| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size: | Thick 0.1mm min.W680mm max. L3000mm max |
| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Applications : | Semiconductor materials, vacuum coating, sintering trays and boats, special chemical applications. |
| STANDARD | UNS | Material No |
| Niobium | R04200 | – |
| Element | Type 1 (Reactor Grade Unalloyed Nb) R04200 | Type 2 (Commercial Grade Unalloyed Nb) R04210 | Type 3 (Reactor Grade Nb-1%Nb) R04251 | Type 4 (Commercial Grade Nb-1%Nb) R04261 |
| Max Weight % (Except Where Otherwise Specified) | ||||
| C | 0.01 | 0.01 | 0.01 | 0.01 |
| N | 0.01 | 0.01 | 0.01 | 0.01 |
| O | 0.015 | 0.025 | 0.015 | 0.025 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| Zr | 0.02 | 0.02 | 0.8 – 1.2 | 0.8 – 1.2 |
| Ta | 0.1 | 0.3 | 0.1 | 0.5 |
| Fe | 0.005 | 0.01 | 0.005 | 0.01 |
| Si | 0.005 | 0.005 | 0.005 | 0.005 |
| W | 0.03 | 0.05 | 0.03 | 0.05 |
| Ni | 0.005 | 0.005 | 0.005 | 0.005 |
| Mo | 0.010 | 0.020 | 0.010 | 0.050 |
| Hf | 0.02 | 0.02 | 0.02 | 0.02 |
| Ti | 0.02 | 0.03 | 0.02 | 0.03 |
| Grade Chart | Tensile Ultimate Strength, Minimum,psi(MPa) | Yield Strength Minimum, psi (MPa) | Elongation in 1-inch | |
| 0.010 inch or Greater | Less Than 0.010 inch | |||
| Types 1 and 2 | 18 000 (125) | 10 500 (73) | 20 | 15 |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 | 15 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Boikanyo Sheets and Plates based in Cape Town, South Africa, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

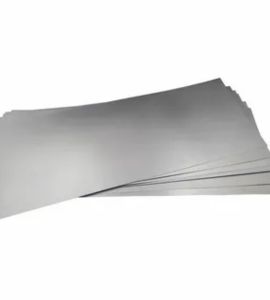

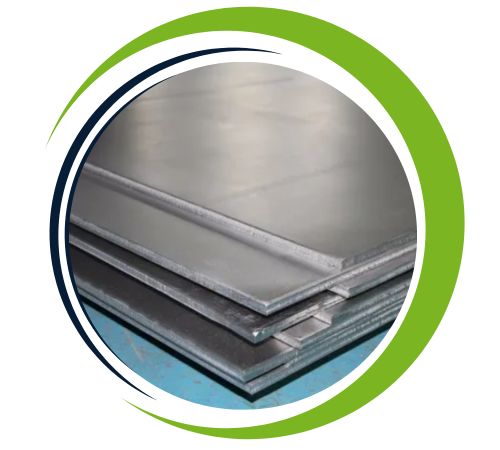

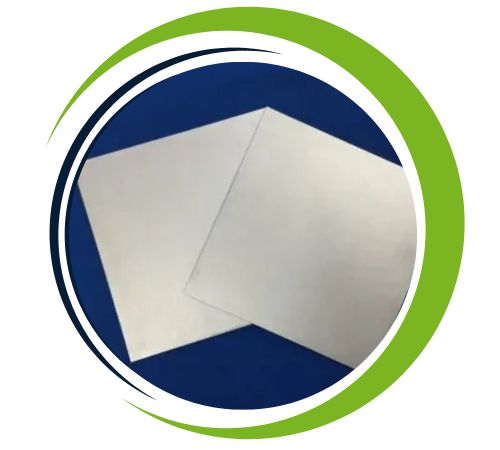

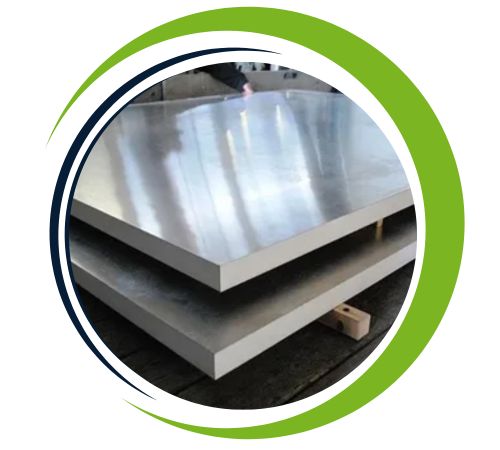

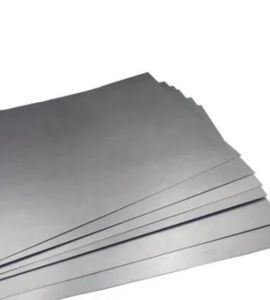

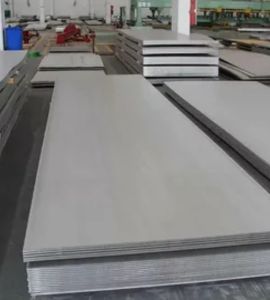

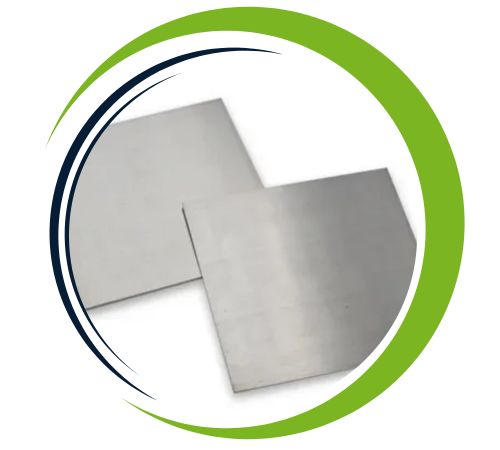

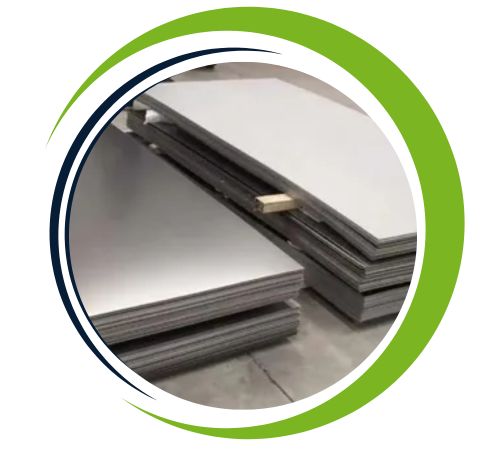

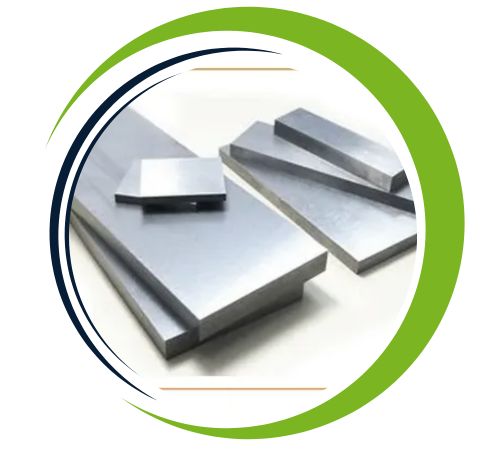

Niobium sheets and plates offer several advantages, including exceptional corrosion resistance, especially in extreme environments such as high temperatures and acidic conditions. They have excellent weldability and formability, making them ideal for precision manufacturing. Niobium also boasts high strength-to-weight ratio, ensuring durability without adding excess weight. Its resistance to oxidation and ability to retain mechanical properties at elevated temperatures make it valuable for aerospace, electronics, and chemical industries. Additionally, niobium is non-toxic and biocompatible, making it suitable for medical implants and other specialized applications.
| Niobium and Niobium Alloys Sheet & Strip & Foil Dimension and Tolerance (mm) | ||||||
| Thickness | Thickness Tolerance | Width | Width Tolerance | Length | Length Tolerance | |
| Grade 1 | Grade 2 | |||||
| 0.025 – 0.1 | ± 0.005 | ± 0.008 | 50 – 150 | ± 2.0 | 100 – 20 000 | ± 2.0 |
| 0.1 – 0.2 | ± 0.015 | ± 0.02 | 50 – 240 | ± 2.0 | 100 – 20 000 | ± 2.0 |
| > 0.2 – 0.3 | ± 0.02 | ± 0.03 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 0.3 – 0.5 | ± 0.03 | ± 0.04 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 0.5 – 0.8 | ± 0.04 | ± 0.06 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 0.8 – 1.0 | ± 0.06 | ± 0.08 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 1.0 – 1.5 | ± 0.08 | ± 0.12 | 50 – 650 | ± 3.0 | 100 – 6 000 | ± 4.0 |
| > 1.5 – 2.0 | ± 0.12 | ± 0.16 | 50 – 650 | ± 3.0 | 100 – 4 000 | ± 4.0 |
| > 2.0 – 3.0 | ± 0.16 | ± 0.18 | 50 – 650 | ± 5.0 | 100 – 4 000 | ± 5.0 |
| > 3.0 – 4.0 | ± 0.18 | ± 0.20 | 50 – 650 | ± 5.0 | 100 – 3000 | ± 5.0 |
| > 4.0 – 6.0 | ± 0.20 | ± 0.24 | 50 – 650 | ± 5.0 | 100 – 2000 | ± 5.0 |
| The tolerance can be adjusted based on customer’s request. | ||||||
Yes, we offer custom sizes for Niobium Sheets and Plates to meet specific project needs. Our team at Boikanyo Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Thanks to its strength, affordability, and attractive finish, Stainless Steel 201 Angle is widely utilized across various industries. It’s perfect for structural frameworks, support brackets, industrial shelving, and reinforcement in construction projects. In architectural settings, it serves well for trim, edging, and decorative elements due to its sleek look and resistance to corrosion. Additionally, SS 201 Angles are commonly found in food processing equipment, railway cars, kitchen appliances, and storage systems. Its durability and ease of use make it suitable for both indoor and outdoor applications, especially in mildly corrosive environments where cost-effective performance is key.
