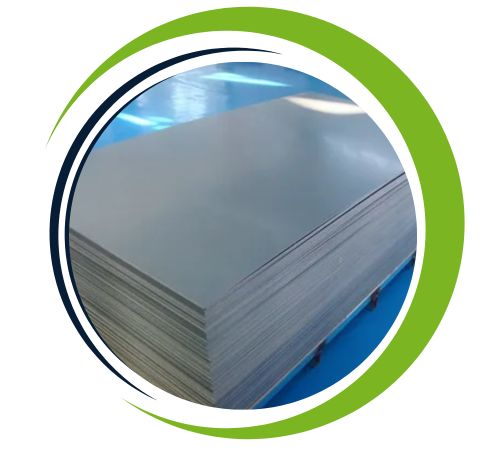

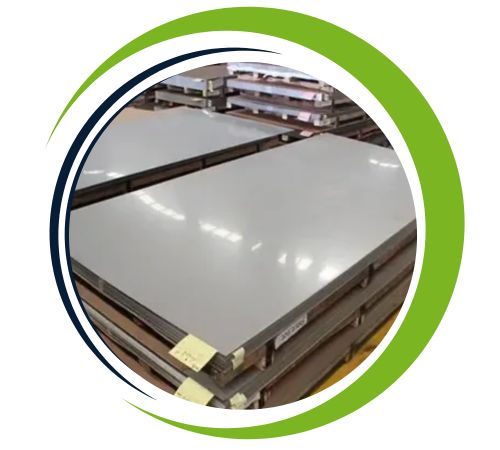

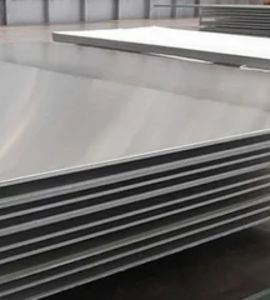

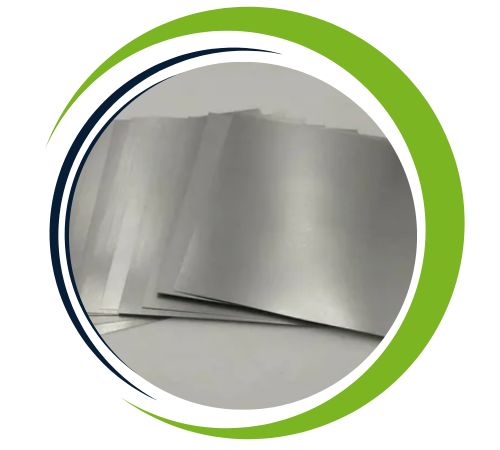

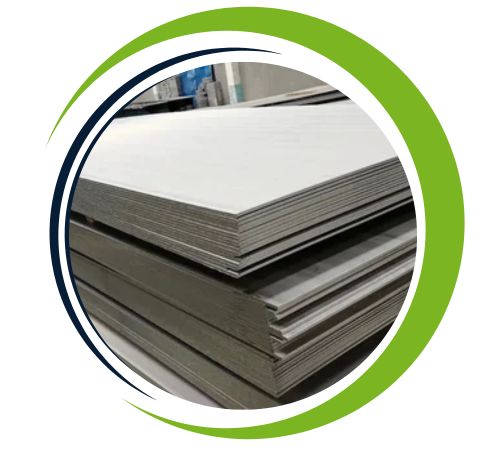

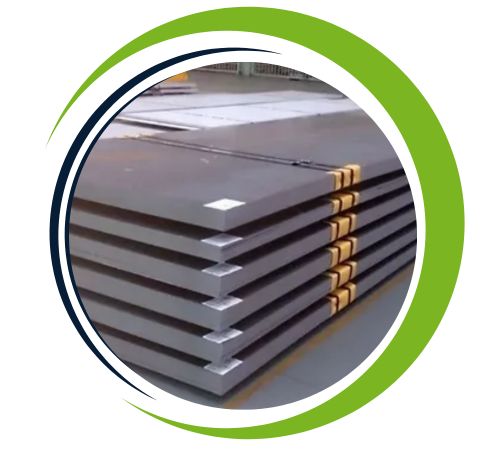

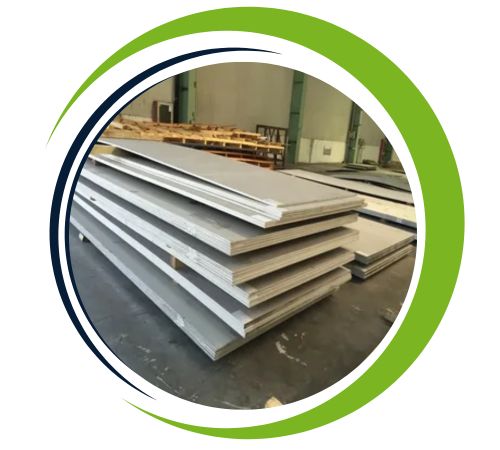

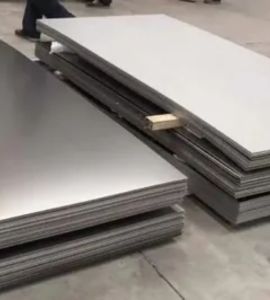

Boikanyo Sheets and Plates, located in Cape Town, South Africa, stands out as a top-notch manufacturer and supplier of **Nimonic 80A Sheets and Plates**. These products are celebrated for their remarkable high-temperature strength and resistance to corrosion. Crafted from a nickel-chromium-cobalt alloy, these sheets and plates are designed to perform reliably in tough environments, such as aerospace, power generation, and chemical processing. Boikanyo Sheets and Plates takes pride in precision manufacturing, rigorous quality control, and adherence to international standards, ensuring that every Nimonic 80A product offers outstanding performance and durability. Their commitment to excellence has made them a trusted partner for industries that need materials capable of maintaining strength, stability, and durability under extreme conditions.
**Nimonic 80A Sheets and Plates** are nickel-based superalloys, primarily made up of about 75% nickel, 19% chromium, 4% cobalt, and 1–2% titanium and aluminum. This unique blend provides excellent mechanical strength, creep resistance, and oxidation stability at high temperatures. Nimonic 80A boasts a tensile strength of around 950–1100 MPa and retains impressive hardness and toughness, even in extreme thermal conditions. Its special alloying elements boost corrosion resistance and help it maintain structural integrity when exposed to high heat and mechanical stress for extended periods, making it perfect for critical engineering applications.
| Standards : | ASTM B637 / ASME SB637 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets and Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets and Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Plate, Sheet and Strip : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| Grade | Al | B | C | Cr | Co | Cu | Fe | Mn | Ni | P | Si | S |
| Nimonic 80A | 1 – 1.8 | 0.008 max | 0.1 max | 18 – 21 | 0.2 max | 0.2 max | 3 max | 1 max | Balance | 0.045 max | 1 max | 0.015 max |
| Grade | Condition | Ultimate Tensile Strength MPA | Yield Strength MPA | Elongation on 4D (min) | Hardness min |
| Nimonic 80A | Solution Annealed & Precipatation Treated (aged) | 994 | 616 | 20 | 300 HV |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Boikanyo Sheets and Plates based in Cape Town, South Africa, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Nimonic 80A sheets and plates offer several advantages, making them ideal for high-performance applications. They provide exceptional heat and oxidation resistance, maintaining strength at elevated temperatures up to 900°C. The alloy’s excellent creep and fatigue resistance ensure long-lasting performance in demanding environments. Nimonic 80A also exhibits superior corrosion resistance, especially in high-temperature and harsh conditions, making it suitable for aerospace, gas turbines, and industrial applications. Its high tensile and yield strength, along with good weldability, enhance its versatility and reliability in critical components subjected to extreme stress.
| WEIGHT PER NIMONIC SHEET : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | – | – | 1.44 |
| 0.20 | 3.20 | – | – | 1.60 |
| 0.22 | 3.52 | – | – | 1.76 |
| 0.24 | 3.84 | – | – | 1.92 |
| 0.27 | 4.32 | – | – | 2.16 |
| 0.28 | 4.48 | – | – | 2.24 |
| 0.32 | 5.12 | – | – | 2.56 |
| 0.38 | 6.08 | – | – | 3.04 |
| 0.44 | 7.04 | 11.00 | – | 3.52 |
| 0.50 | 8.00 | 12.50 | – | 4.00 |
| 0.56 | 8.96 | 14.00 | – | 4.48 |
| 0.63 | 10.08 | 15.75 | – | 5.04 |
| 0.75 | 12.00 | 18.75 | – | 6.00 |
| 0.88 | 14.08 | 22.00 | – | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Yes, we offer custom sizes for Nimonic 80A Sheets and Plates to meet specific project needs. Our team at Boikanyo Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
**Nimonic 80A Sheets and Plates** find extensive use in aerospace, gas turbines, nuclear reactors, and chemical processing equipment, thanks to their ability to endure extreme heat and mechanical stress. They are particularly suited for turbine blades, discs, hot section components, and exhaust systems, where high-temperature strength and oxidation resistance are essential. Additionally, Nimonic 80A sheets and plates are utilized in heat exchangers, combustion chambers, and high-performance industrial machinery. Their blend of durability, stability, and resistance to thermal fatigue makes them indispensable in various demanding applications.
