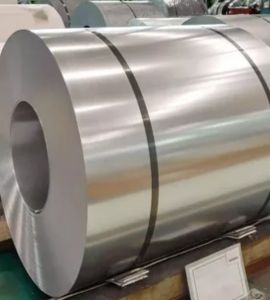

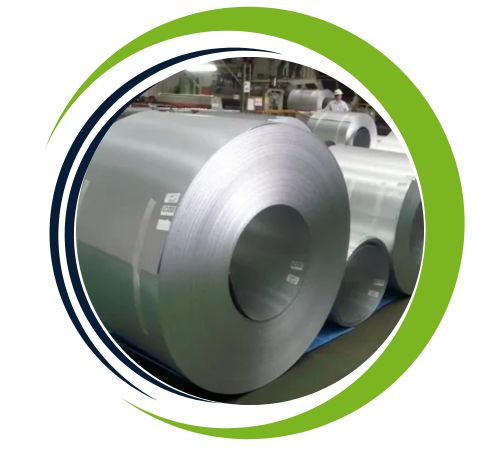

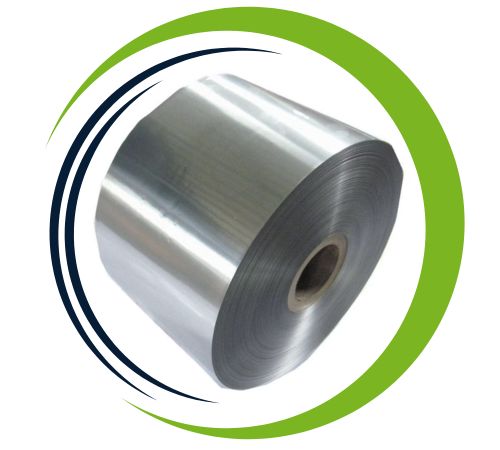

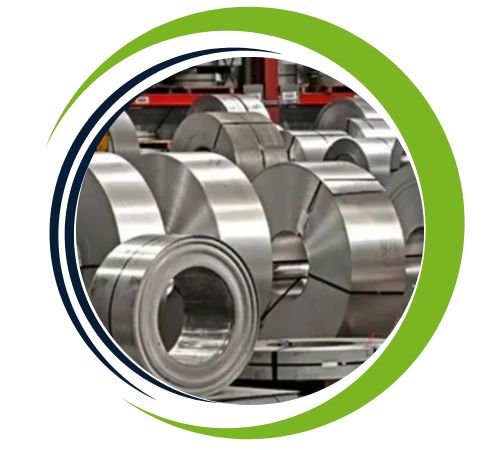

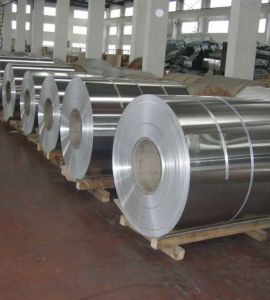

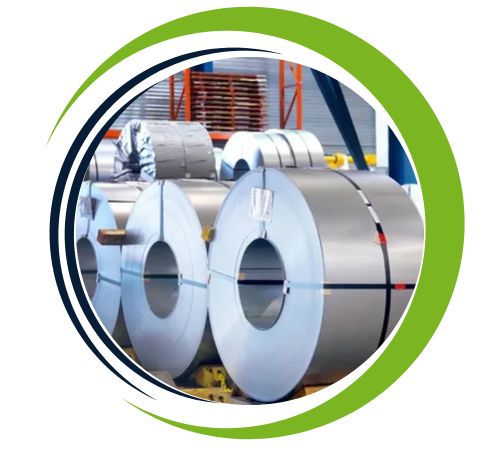

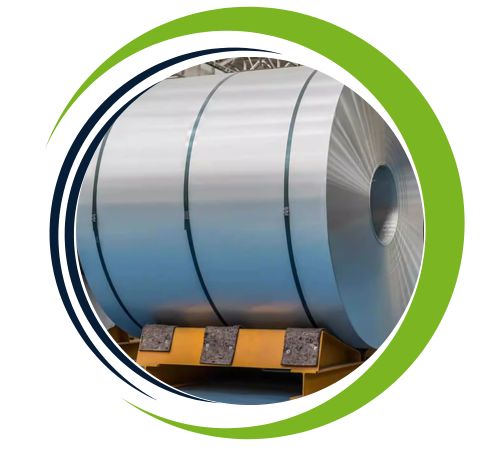

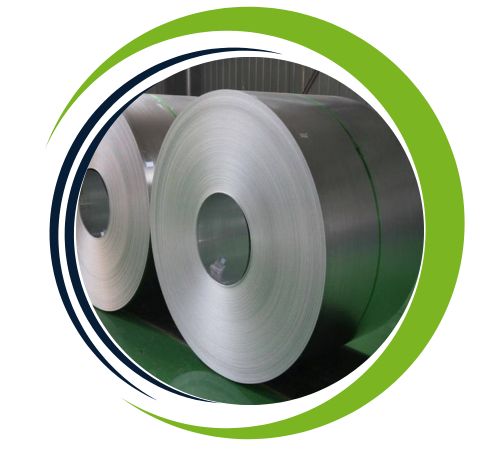

Boikanyo Sheets and Plates, located in Cape Town, South Africa, stands out as a top-notch manufacturer and supplier of **Incoloy 800/800H/800HT Coils and Slitting Coils**. These coils are celebrated for their remarkable high-temperature strength, resistance to corrosion, and impressive durability over time. Crafted from a nickel-iron-chromium alloy, they are engineered with precision to ensure reliable performance in tough environments like chemical, petrochemical, power generation, and various industrial applications. Boikanyo Sheets and Plates takes pride in its advanced manufacturing techniques, rigorous quality control, and adherence to international standards, guaranteeing that every Incoloy 800/800H/800HT coil consistently delivers outstanding performance. The company caters to a range of industries, including chemical processing, oil and gas, aerospace, and power generation, providing versatile and long-lasting coils for critical uses.
The **Incoloy 800/800H/800HT Coils and Slitting Coils** are primarily made up of nickel, iron, and chromium, with minor additions of aluminum, titanium, and copper. The 800H and 800HT grades undergo special heat treatment to boost their creep resistance and stability at high temperatures, while all grades boast excellent tensile strength ranging from 480–620 MPa, high yield strength, and remarkable toughness. These coils are known for their exceptional resistance to oxidation, carburization, and stress corrosion cracking, even in high-temperature and corrosive settings, ensuring they maintain their structural integrity under thermal cycling and mechanical stress.
| Specification | ASTM B409 / ASME SB409 |
|---|---|
| Thickness | Plate 0125″ to 5.00″ / Sheets 008″ to .0125″ |
| Sheet / Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheet / Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Sheets Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Plate / Sheets Size | 15NB to 150NB In |
| Tempers | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Coils Thickness | 0.3 mm to 120 mm |
| Coils Length | AS PER CUSTOMER’S REQUIREMENT |
| Form | Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4959 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Steel Coil | Size (mm) | Weight per Coil (Kg) | Size(mm) | Weight per Coil (Kg) |
|---|---|---|---|---|
| Incoloy 800/800H/800HT Coil | 4000 x 2000 x 2.0 | 136.0 | 3000 x 1500 x 5.0 | 191.0 |
| Incoloy 800/800H/800HT Coil | 4000 x 2000 x 3.0 | 204.0 | 4000 x 2000 x 5.0 | 340.0 |
| Incoloy 800/800H/800HT Coil | 2500 x 1250 x 4.0 | 106.0 | 2500 x 1250 x 6.0 | 159.0 |
| Incoloy 800/800H/800HT Coil | 3000 x 1500 x 4.0 | 153.0 | 3000 x 1500 x 6.0 | 230.0 |
| Incoloy 800/800H/800HT Coil | 4000 x 2000 x 4.0 | 272.0 | 4000 x 2000 x 6.0 | 408.0 |
| Incoloy 800/800H/800HT Coil | 2500 x 1250 x 5.0 | 133.0 |
Incoloy 800, 800H and 800HT coils and offer many advantages, such as exceptional resistance to oxidation, carburization and high temperature corrosion, making them ideal for harsh environments Their high nickel content ensures high thermal stability and efficiency , while the chromium content gives it better resistance to oxidation Incoloy 800H and The 800HTs also have enhanced creep and fracture strength due to high carbon and titanium content. These alloys exhibit excellent weldability, excellent long-term performance and durability, making them ideal for use in applications such as power generation, chemical processing and heat treatment
You’ll find **Incoloy 800/800H/800HT Coils and Slitting Coils** widely utilized in chemical processing, petrochemical, power generation, and high-temperature industrial applications, thanks to their unique blend of strength, corrosion resistance, and long-lasting durability. They’re perfect for creating heat exchangers, furnace components, piping systems, structural supports, and parts of machinery that face corrosive media and high temperatures. Additionally, these coils are used in turbines, boilers, and high-performance industrial equipment where reliability and longevity are crucial. Their toughness makes them a go-to choice for demanding applications.
