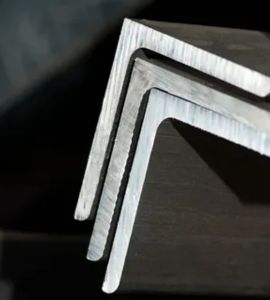

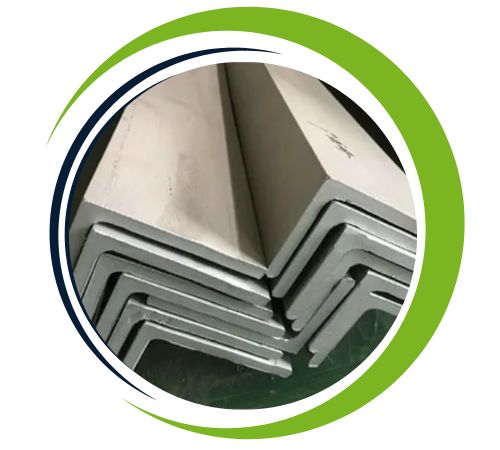

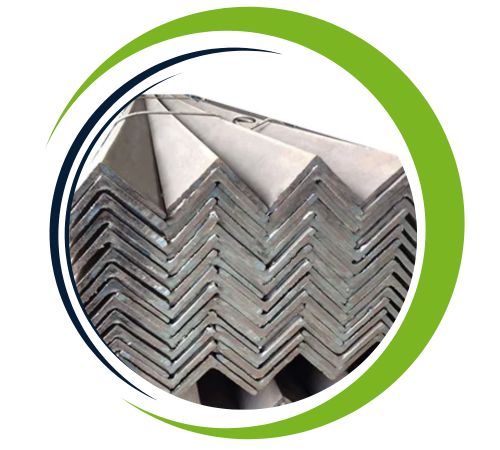

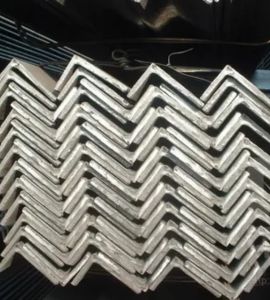

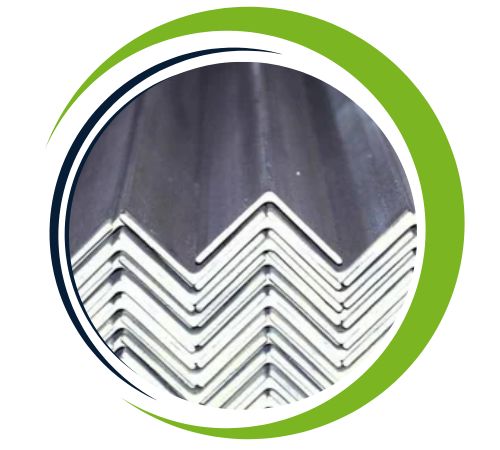

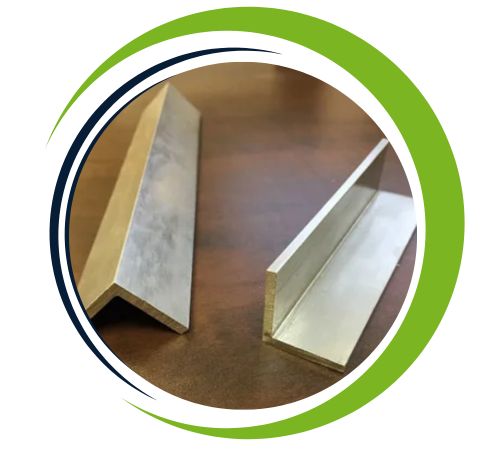

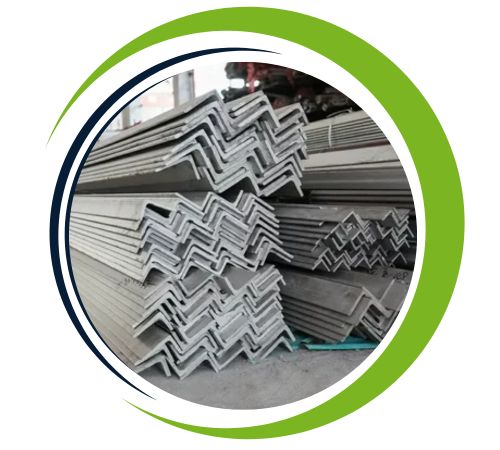

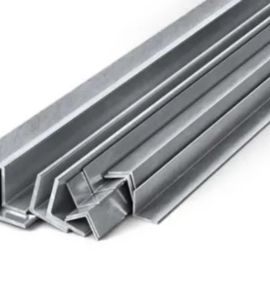

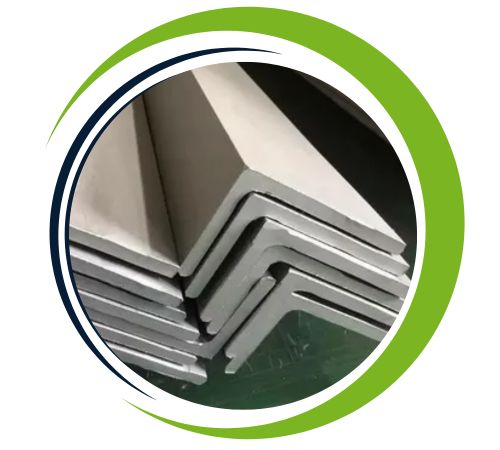

Boikanyo Sheets and Plates, located in Cape Town, South Africa, stands out as a top manufacturer and supplier of **Incoloy 800 / 800H / 800HT Angles**. These angles are celebrated for their remarkable high-temperature strength, resistance to corrosion, and impressive long-term durability. Crafted from a nickel-iron-chromium alloy, they are precision-engineered to perform reliably in tough environments like chemical, petrochemical, power generation, and various industrial applications. Boikanyo Sheets and Plates takes pride in its advanced manufacturing techniques, rigorous quality control, and commitment to international standards, ensuring that every Incoloy 800 / 800H / 800HT angle consistently delivers outstanding performance. The company caters to industries such as chemical processing, aerospace, oil and gas, and power generation, providing versatile and durable angles for essential structural and mechanical uses.
The **Incoloy 800 / 800H / 800HT Angles** are primarily made up of nickel, iron, and chromium, with small amounts of aluminum, titanium, and copper added in. This unique blend gives them excellent tensile strength, ranging from 480–620 MPa, along with high yield strength and remarkable toughness. The 800H and 800HT grades undergo special heat treatment to boost their creep resistance and stability at high temperatures, while all grades excel in resisting oxidation, carburization, and stress corrosion cracking. These mechanical properties ensure that the angles maintain their structural integrity even under thermal cycling, mechanical stress, and harsh corrosive conditions, making them perfect for demanding industrial applications.
| Standard | ASTM B408, ASME SB408 |
|---|---|
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32 |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800HT | 0.06 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Boikanyo Sheets and Plates based in Cape Town, South Africa, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy 800, 800H, and 800HT offer several advantages, including exceptional resistance to oxidation, carburization, and sulfidation at high temperatures. They maintain excellent mechanical properties such as tensile strength and creep resistance, even under extreme heat conditions. These alloys are highly durable, ensuring long-term performance in high-temperature environments like chemical processing, furnace applications, and power plants. Incoloy 800H and 800HT, with controlled carbon content and optimized alloying, provide enhanced creep rupture strength and improved resistance to thermal degradation. Overall, they are reliable choices for industries requiring robust, heat-resistant materials.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | Incoloy Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Incoloy 800 / 800H / 800HT Angle to meet specific project needs. Our team at Boikanyo Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
You’ll find **Incoloy 800 / 800H / 800HT Angles** widely utilized in chemical processing, petrochemical, power generation, and high-temperature industrial settings, thanks to their impressive combination of strength, corrosion resistance, and long-lasting durability. They are perfect for creating structural supports, furnace components, piping supports, heat exchangers, and parts for industrial machinery that face high temperatures and corrosive substances. Additionally, these angles are commonly used in turbines and boilers, showcasing their versatility and reliability in critical applications.
