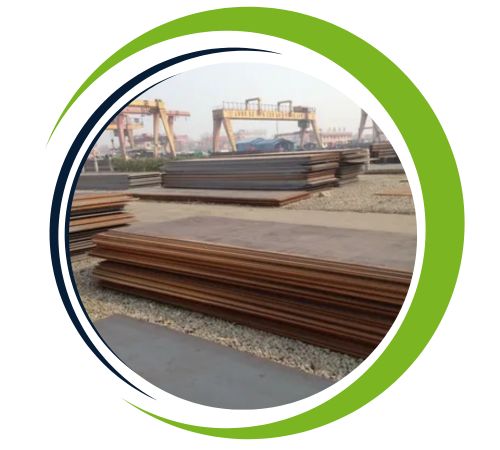

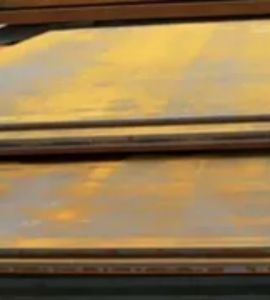

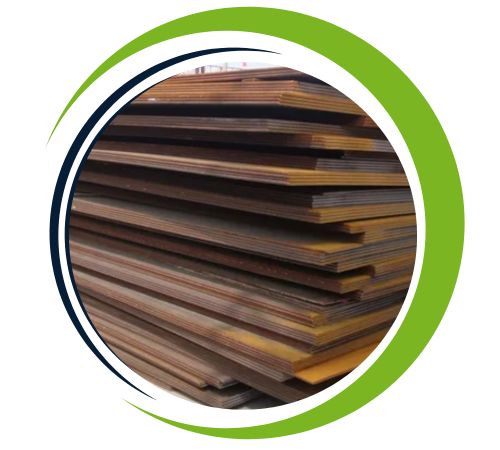

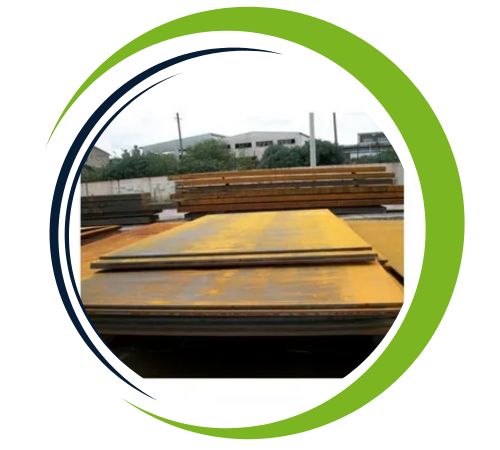

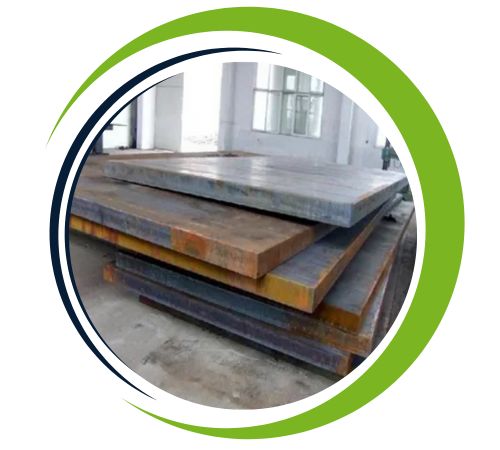

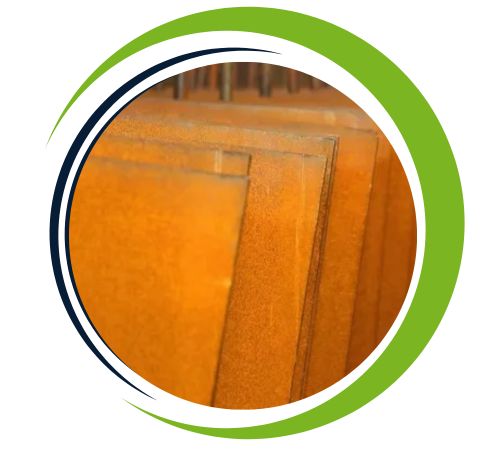

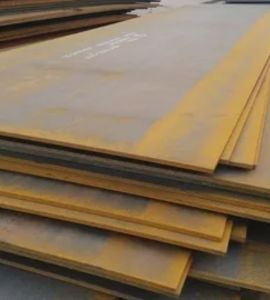

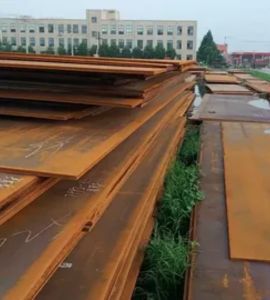

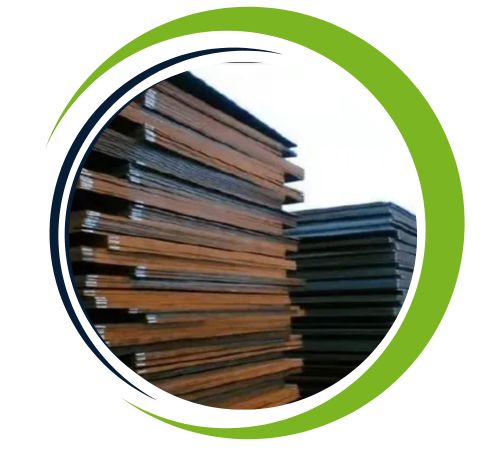

The ASTM A709-50W Corten Steel Sheets and Plates are primarily made of iron, with alloying elements like copper (0.25–0.40%), chromium (0.40–0.65%), nickel (0.25–0.50%), and phosphorus (0.04–0.09%). These additions boost both corrosion resistance and strength. The steel boasts a tensile strength ranging from 485 to 620 MPa and a yield strength of about 345 MPa. Thanks to its protective oxide layer, it offers excellent toughness, weldability, and resistance to the elements, preventing further rusting and ensuring it performs well even in harsh environments.
| Thickness | Width | Length |
|---|---|---|
| 6 to 100 mm | 900 to 4800 mm | 3000 to 12000 mm |
| Standard | Services | Grades |
| ASTM A709 | welding, forming, thermal cutting | 50W, 50WT, 50WF |
| TYPE | THICKNESS (in) | MN (wt %) | C (MAX wt %) | S (MAX wt %) | NI (MAX wt %) | P (MAX wt %) | V (wt %) | SI (wt %) | CR (wt %) | CU (wt %) |
|---|---|---|---|---|---|---|---|---|---|---|
| B | 2.00 – 3.00 | 0.75 – 1.35 | 0.20 | 0.030 | 0.50 | 0.030 | 0.01 – 0.10 | 0.15 – 0.50 | 0.40 – 0.70 | 0.20 – 0.40 |
| A | 0.1875 – 2.00 | 0.80 – 1.25 | 0.19 | 0.030 | 0.40 | 0.030 | 0.02 – 0.10 | 0.30 – 0.65 | 0.40 – 0.65 | 0.25 – 0.40 |
| GRADE | THICKNESS (in) | ELONGATION IN 8″ 2) (MIN %) | TENSILE STRENGTH (MIN ksi) | YIELD STRENGTH 1) (MIN ksi) | ELONGATION IN 2″ 2) (MIN %) |
|---|---|---|---|---|---|
| 50WT | 0.1875 – 3.00 | 18 | 70 | 50 | 21 |
| 50W | 0.1875 – 3.00 | 18 | 70 | 50 | 21 |
| 50WF | 0.1875 – 2.50 | 18 | 70 | 50 | 21 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Boikanyo Sheets and Plates based in Cape Town, South Africa, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
ASTM A709-50W Corten Steel Sheet and Plate offers several advantages, including excellent corrosion resistance, which significantly reduces maintenance costs over time. Its weathering properties allow it to form a stable rust-like appearance that protects the underlying steel from further damage. This makes it ideal for outdoor applications like bridges, buildings, and other structures exposed to harsh environments. The material’s high strength and durability ensure long-lasting performance, while its aesthetic appeal adds to its popularity in architectural designs. Overall, it provides cost-effective, low-maintenance solutions for various industries.
Yes, we offer custom sizes for ASTM A709-50W Corten Steel Sheet and Plate to meet specific project needs. Our team at Boikanyo Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
These ASTM A709-50W Corten Steel Sheets and Plates are commonly used in structural and architectural projects that demand high strength and weather resistance. They’re perfect for bridges, building exteriors, highway structures, and transportation equipment. Plus, the material’s self-protecting rust layer means there’s no need for painting, making it a low-maintenance and cost-effective choice. It also holds up well in outdoor and marine settings where moisture and pollutants are prevalent. Boikanyo Sheets and Plates is committed to ensuring that every ASTM A709-50W Corten product meets rigorous quality standards, delivering reliability, longevity, and outstanding performance in critical applications.
